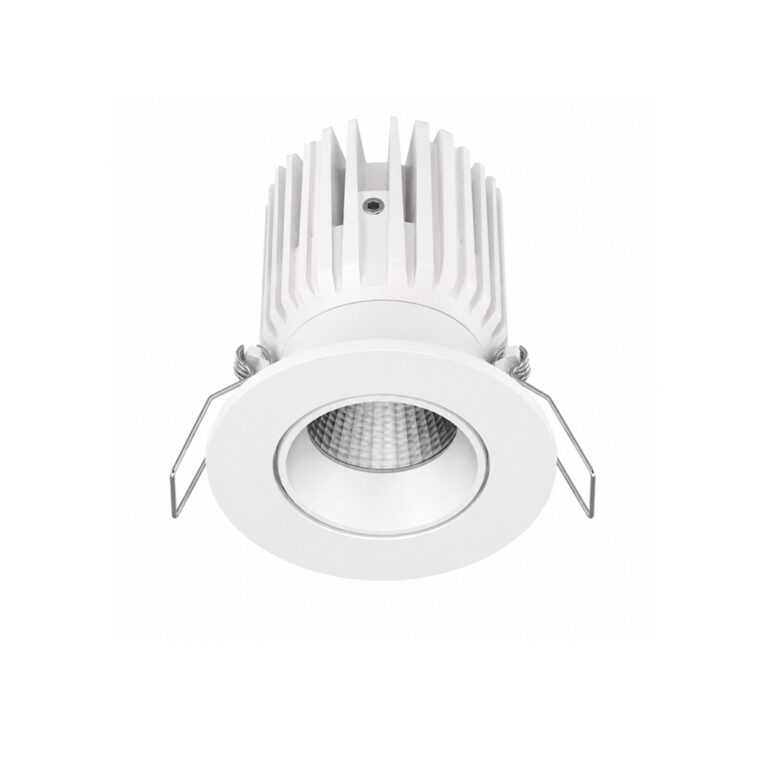

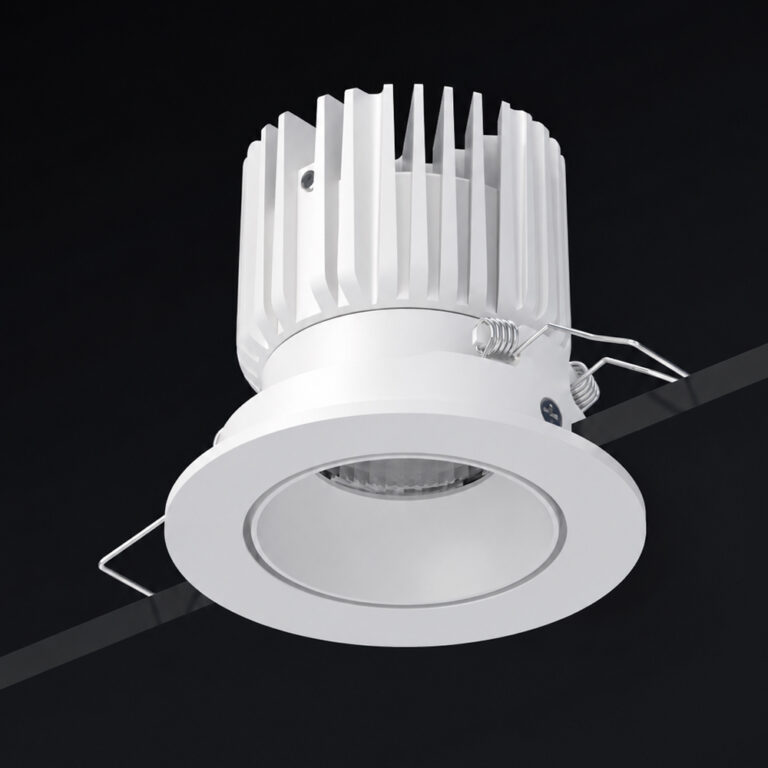

Soft Beam Deep Anti-Glare LED Spotlight FST-SP-OCBL
Product Specifications
| Installation Method | Recessed |
|---|---|
| CRI | Ra≥90 / Ra≥98 Optional |
| IP Protection Rating | IP20 |
| LED Source | Bridgelux / Osram / Citizen Optional |
| Application | Residential / Commercial / Hospitality |
Product Overview

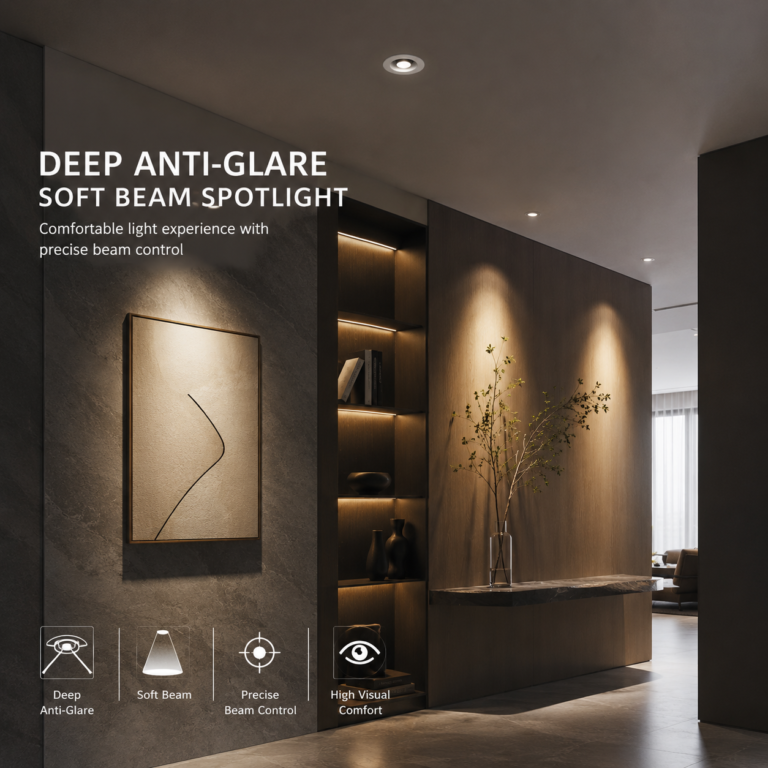

Where This Adjustable Spotlight Works Best
FST-SP-OCBL is designed for spaces that need controlled accent lighting with the flexibility to adjust the aiming direction after installation. The 0°–30° tilt is useful for lighting walls, artwork, merchandise, tables and other focal areas in homes, hotels, offices and retail interiors.

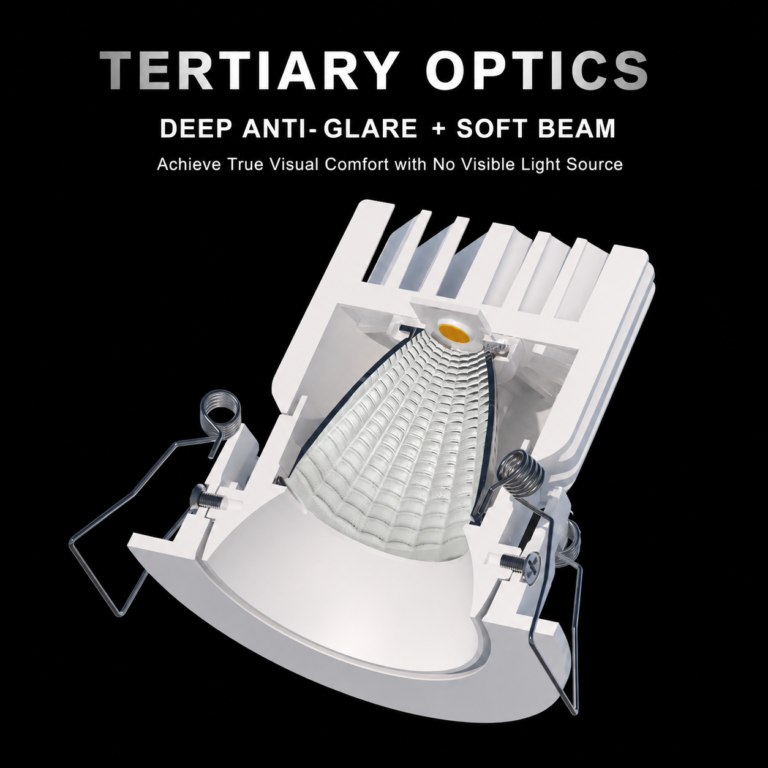

The light source sits deep inside the housing and works with a tertiary optical system to shape the beam and reduce direct brightness from normal viewing angles. This makes the fitting suitable for projects where both beam control and visual comfort matter.
How to Select the Size and Optical Option
| Project requirement | Selection guidance |
|---|---|
| Compact room, niche or small display | Check the 5W model with a 55 mm cut-out and confirm whether the available ceiling depth is at least 65 mm. |
| Residential room, hotel room or corridor | The 10W and 15W versions provide practical options for standard ceiling heights; quantity and spacing should be checked from the plan. |
| Retail, office or larger hospitality area | Compare the 25W and 35W models according to ceiling height, aiming distance and target illuminance. |
| Focused artwork or merchandise | 15° or 24° provides a more concentrated beam. Confirm the target size and throw distance before ordering. |
| Broader accent or general coverage | 38° is the standard wider option; 60° is available only for selected models and should be confirmed with the required size. |
| High color-rendering project | Ra98 can be specified when accurate color presentation is important; otherwise Ra≥90 is available for standard projects. |
Power and beam angle should be selected together. A higher wattage with a very narrow beam may create excessive brightness on a small target, while a wide beam may require different fixture spacing to achieve even coverage.
What to Confirm Before Ordering
- Product diameter, 55–135 mm cut-out and available ceiling depth
- 5W, 10W, 15W, 25W or 35W power requirement
- 15°, 24°, 38° or selected-model 60° beam angle
- Aiming direction and whether the 0°–30° tilt covers the target
- 2700K–6000K CCT and Ra≥90 or optional Ra98
- AC220–240V input and ON/OFF, Triac, 0–10V or DALI control
- LED source and driver configuration
- Indoor installation location, as this model is rated IP20
- Sample quantity, project quantity, packaging and delivery schedule
Frequently Asked Questions

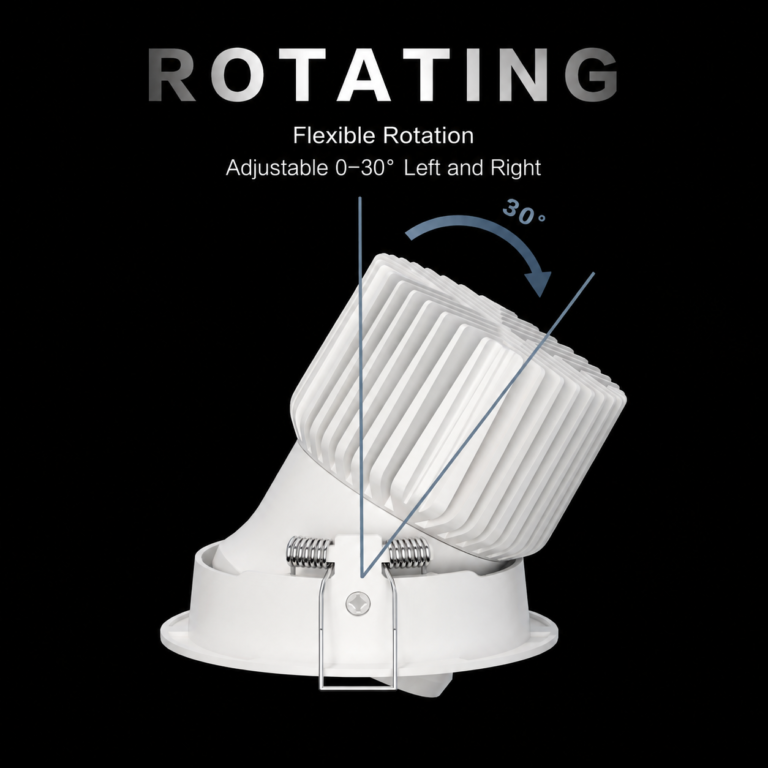

How far can the spotlight be adjusted?
The lamp body supports a 0°–30° tilt. The ceiling position and distance to the target should still be checked to confirm that the required aiming direction can be reached.
Which wattages and cut-outs are available?
The range includes 5W, 10W, 15W, 25W and 35W, with matching cut-outs of 55 mm, 75 mm, 95 mm, 125 mm and 135 mm.
Does the deep structure mean there is no glare?
The deep-set light source helps reduce direct glare, but comfort also depends on mounting position, beam angle, aiming direction, ceiling height and the viewer’s position.
Can I specify Ra98 and dimming?
Ra98 is optional. Triac, 0–10V and DALI control can also be discussed. These requirements need to be confirmed before sample production so the LED source and driver are matched correctly.
Can this model be used in bathrooms or outdoors?
This product is rated IP20 and is intended for dry indoor areas. Use a suitably rated product for locations exposed to moisture, splashing water or outdoor weather.
Can I order a sample first?
Yes. A sample can be used to check the cut-out, installation depth, beam angle, color quality, dimming compatibility and actual lighting effect before bulk production.
For a fixed deep anti-glare option, compare the trimmed FST-SP-YMYB and trimless FST-SP-YMWB versions.
View More LED Spotlights or send your lighting plan, ceiling height and target details to FANSEN Lighting for model matching.
