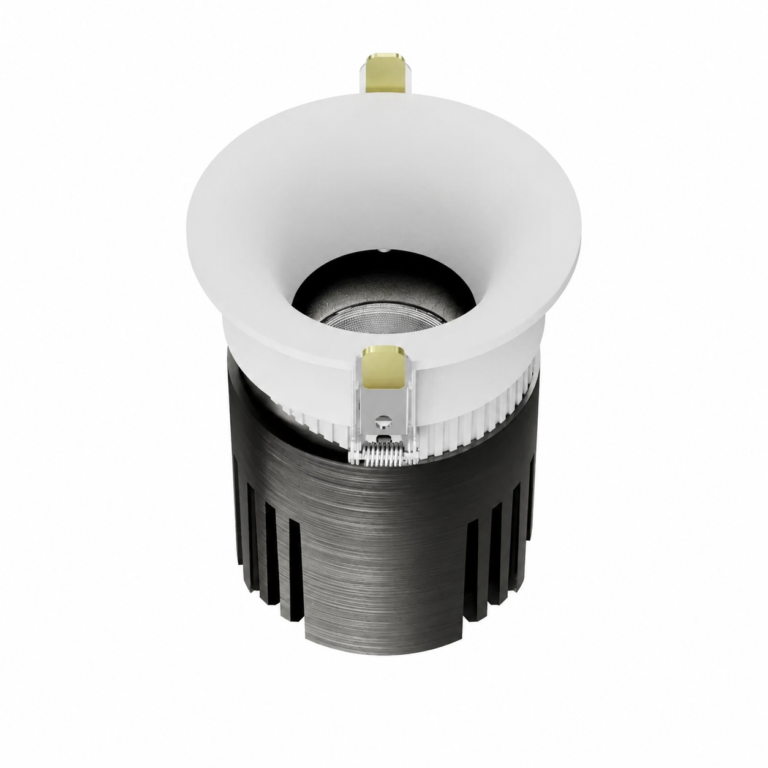

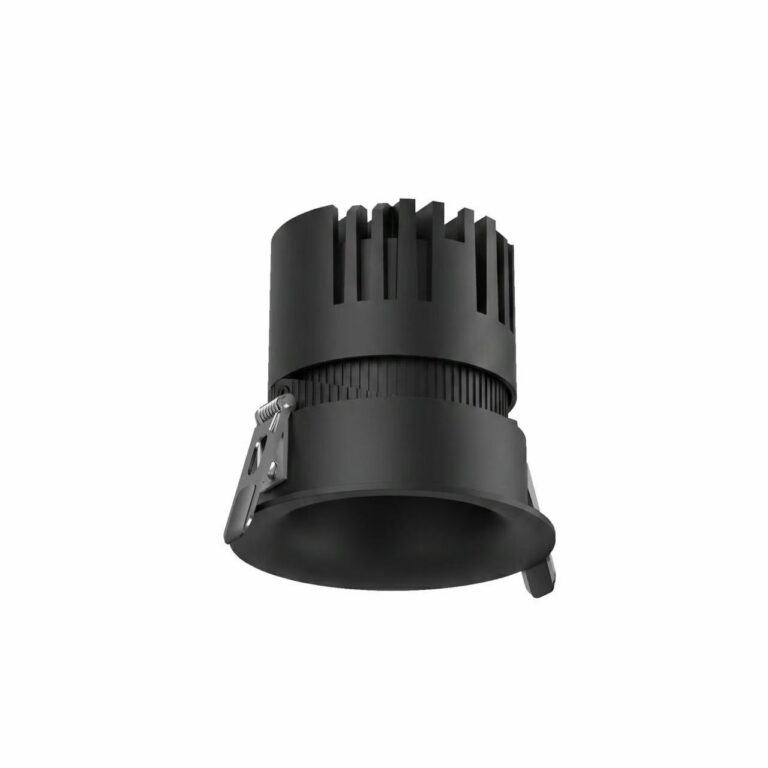

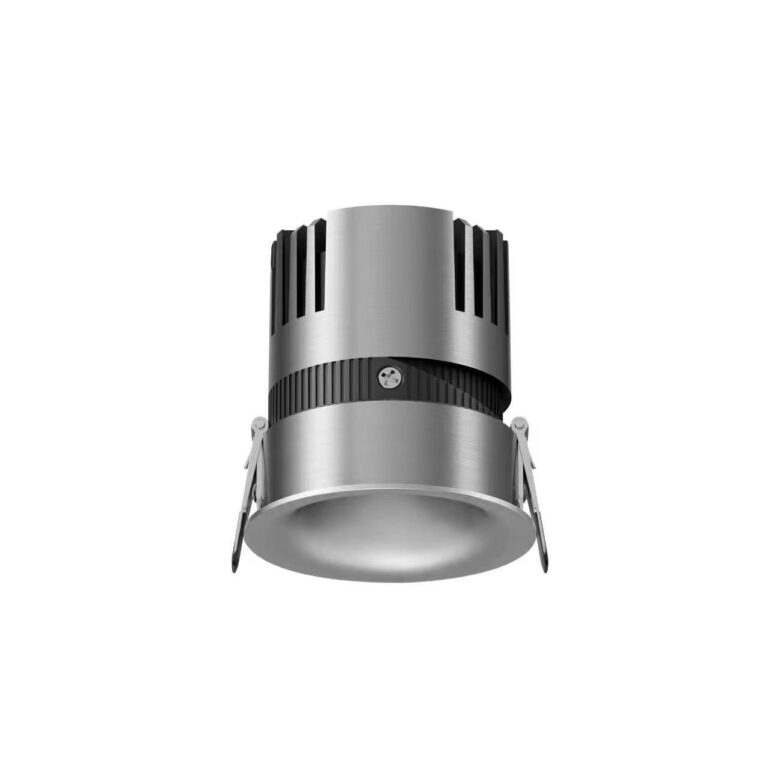

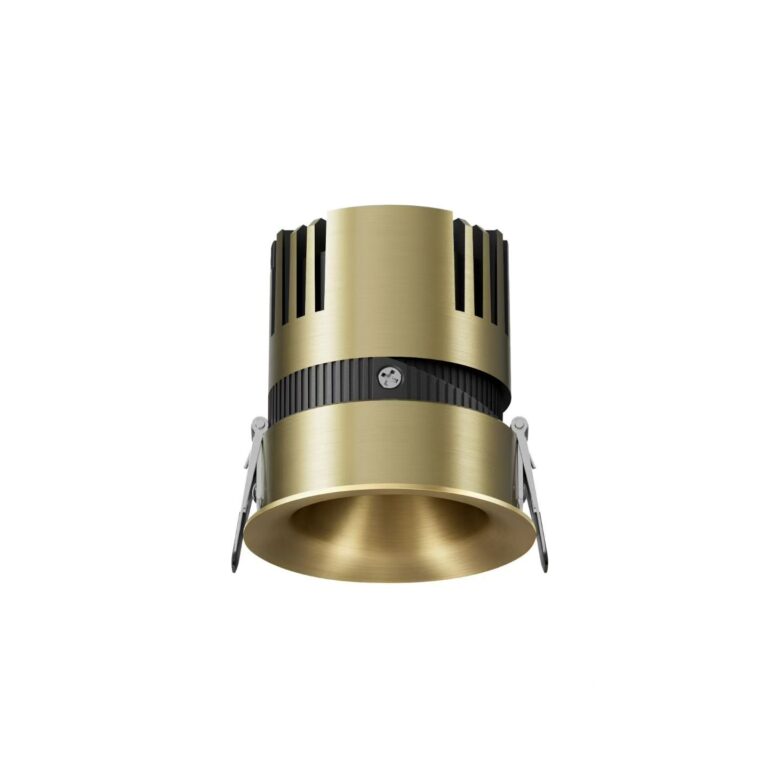

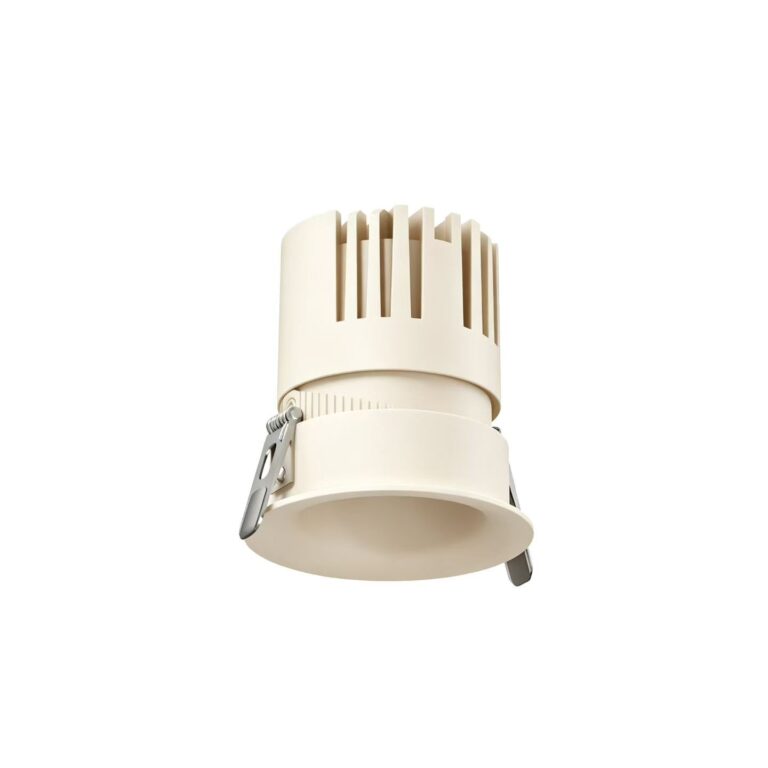

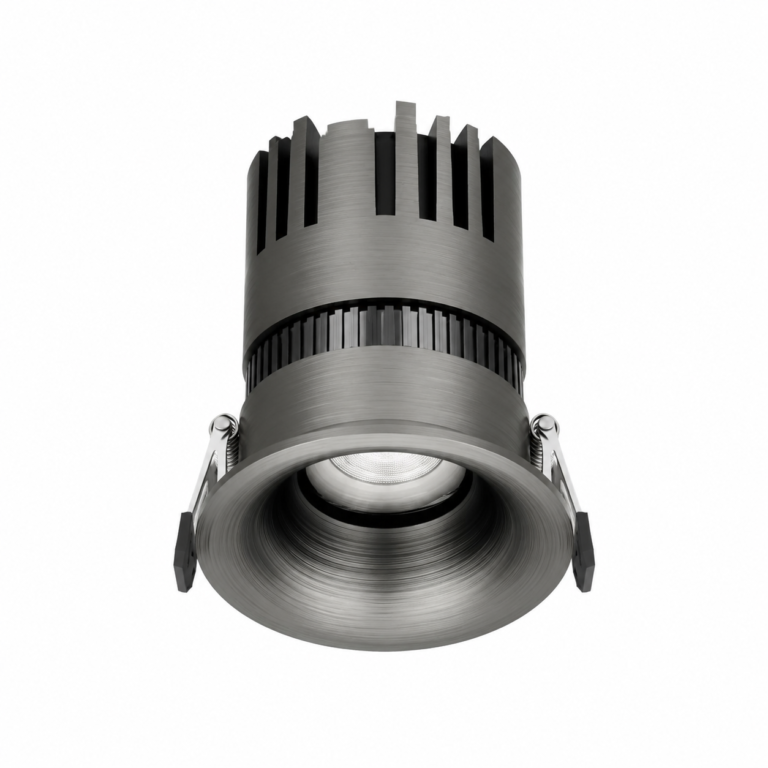

Deep Anti-Glare Trimless Recessed LED Spotlight FST-SP-YMWB
Product Specifications
| Installation Method | Recessed Ceiling Installation |
|---|---|
| CRI | Ra≥90 / Ra≥98 Optional |
| Beam Angle | 4° / 8° / 13° / 15° / 24° / 36° / 50° |
| LED Source | Bridgelux / Osram / Citizen Optional |
| Application | Residential / Commercial / Hospitality |
Product Overview
Where This Trimless Spotlight Works Best

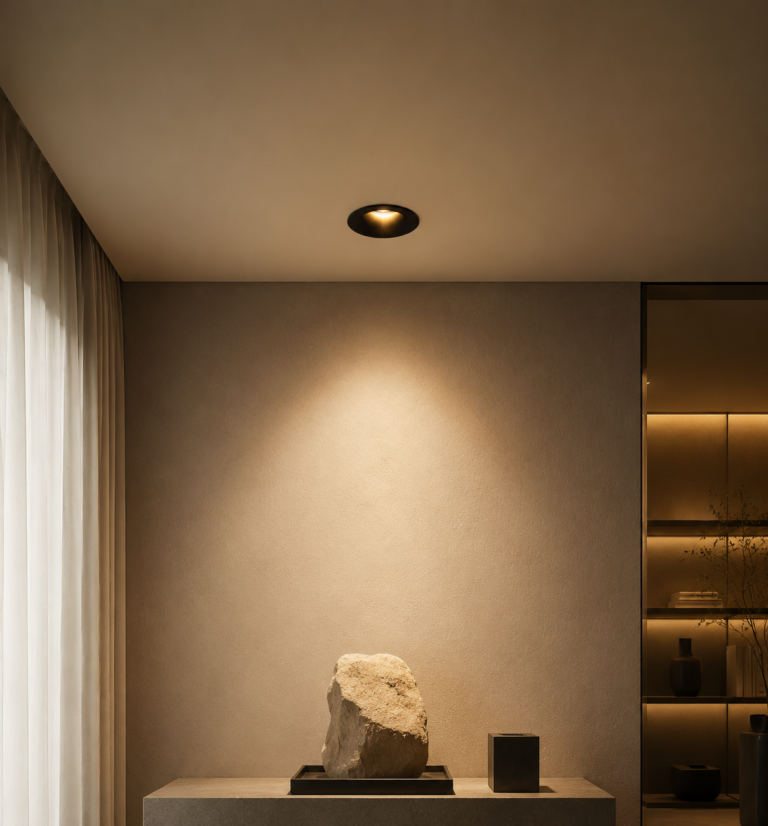

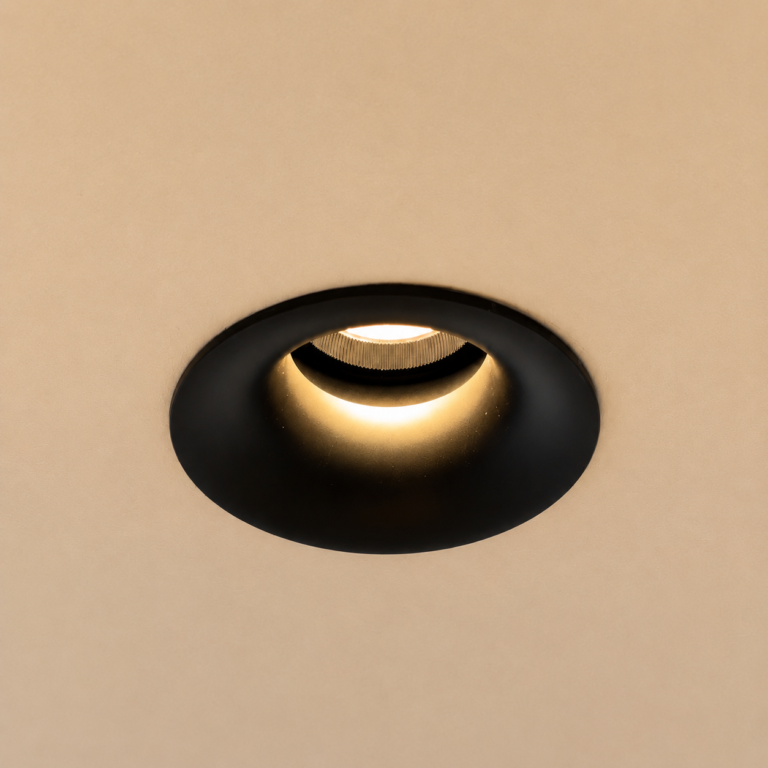

FST-SP-YMWB is intended for interiors where the ceiling detail is planned in advance and a visible outer trim is not wanted. Once the mounting frame is installed and finished with the ceiling, the fitting appears more integrated with the surface. It is suitable for villas, hotel rooms, restaurants, galleries, boutiques and other design-led interiors.
The light source is recessed inside the body to help shield direct brightness. Five size and power configurations cover 10W to 25W, while beam angles from 4° to 50° allow the light distribution to be matched to small features, displays or wider accent areas.
How to Select the Size and Beam Angle
| Project requirement | Selection guidance |
|---|---|
| Compact feature or lower-output area | Check the 10W model with a 55 mm cut-out and 80 mm product height. |
| Residential room, hotel room or corridor | The 12W, 15W and 20W models use a 75 mm cut-out but have different heights; check the ceiling cavity before selection. |
| Larger hospitality or retail area | The 25W model uses a 95 mm cut-out and should be checked against mounting height and required illuminance. |
| Very narrow accent | 4°, 8° and 13° create concentrated beams for small targets or longer throw distances. |
| Standard accent lighting | 15° and 24° suit many artwork, table and merchandise applications, subject to the target size. |
| Wider coverage | 36° and 50° spread light over a larger area and may suit closer mounting distances. |
Because this is a trimless product, the mounting frame, ceiling cut-out and finishing sequence should be confirmed before the ceiling surface is completed.
What to Confirm Before Ordering
- Trimless mounting frame and ceiling finishing method
- 55 mm, 75 mm or 95 mm cut-out
- Available ceiling depth for the selected body height
- 10W, 12W, 15W, 20W or 25W power
- Required beam angle from 4° to 50°
- AC220–240V input, CCT and Ra≥90 or optional Ra98
- Bridgelux, Osram or Citizen LED source
- ON/OFF, Triac, 0–10V or DALI control
- Sample requirement, project quantity, packaging and delivery schedule
Frequently Asked Questions
When should the mounting frame be installed?
The trimless frame needs to be coordinated with the ceiling construction and finished into the surface before final installation. Confirm the sample and installation detail before plastering or painting.
Is the trimless version harder to maintain?
It requires more coordination during ceiling construction than a trimmed fitting. Future access and replacement should be considered in the installation detail before the ceiling is closed.
Do the 75 mm cut-out versions have the same depth?
No. Their heights are 82 mm, 90 mm and 115 mm for the 12W, 15W and 20W versions. Check the ceiling cavity for the exact model.
Which beam angle should I choose?
The correct angle depends on mounting height, target size and aiming distance. Narrow angles highlight a smaller area, while 36° and 50° provide broader coverage.
Can Ra98 and dimming be specified?
Yes. Confirm the required CRI and control method before sample production so the LED source and driver are matched correctly.
Can I order a sample first?
Yes. Sample confirmation is especially useful for a trimless fitting because the mounting frame, cut-out, ceiling depth, finish and lighting effect can be checked before construction is finalized.
View More LED Spotlights or send your ceiling detail and lighting plan to FANSEN Lighting for model matching.
