Hospitality Lighting Project with Cabinet LED Strip Lights and Recessed Spotlights
Space
Location
Floor Area
Products
Lighting Solution By Area
This project is located in Hangzhou, China. The customer did not disclose the exact type of venue, so it is presented as a hospitality and leisure commercial lighting project based on the confirmed space functions and lighting applications. The lighting combines cabinet LED strip lights, ceiling ambient lighting, decorative pendant lighting and recessed spotlights. Each fixture type serves a different purpose, including display lighting, ambient illumination, focal lighting and supplementary brightness.
Recessed cabinet LED strip lights for clean shelf illumination
The wall cabinets and display shelves use recessed cabinet LED strip lights installed inside prepared profiles and shielding structures. This keeps the light source out of direct view and helps reduce visible LED dots while maintaining a clean cabinet appearance.
The LED strip, aluminum profile, diffuser and cabinet groove dimensions need to be coordinated before installation. This helps avoid exposed light sources, unsuitable profile dimensions and uneven linear illumination.
- Application: wall cabinets and display shelves
- Lighting focus: concealed light source, continuous linear illumination and a clean finish
- Product type: cabinet LED strip lights with recessed aluminum profiles

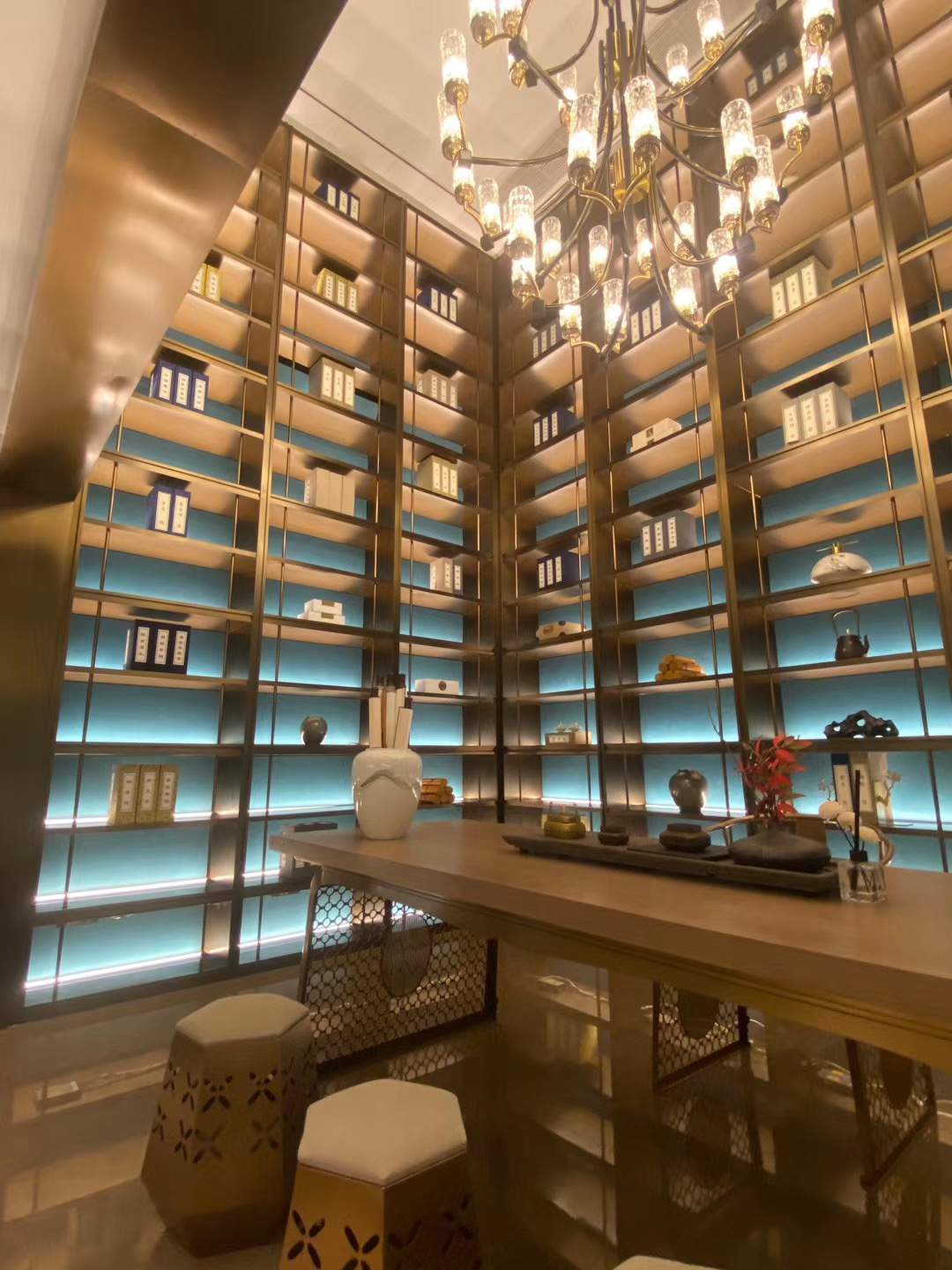

Decorative pendant lighting as the main visual element
A large decorative pendant light creates the central visual focus and provides localized illumination. It works together with cabinet LED strip lights and recessed spotlights: the cabinet lights provide soft background brightness, while the spotlights supplement illumination in selected areas.
Using several lighting layers helps the reception area avoid relying on one central fixture and creates a more balanced relationship between focal and ambient light.
- Application: central reception or leisure seating area
- Lighting focus: decorative focal point, functional brightness and visual depth
- Lighting combination: decorative pendant light, cabinet LED strips and recessed LED spotlights

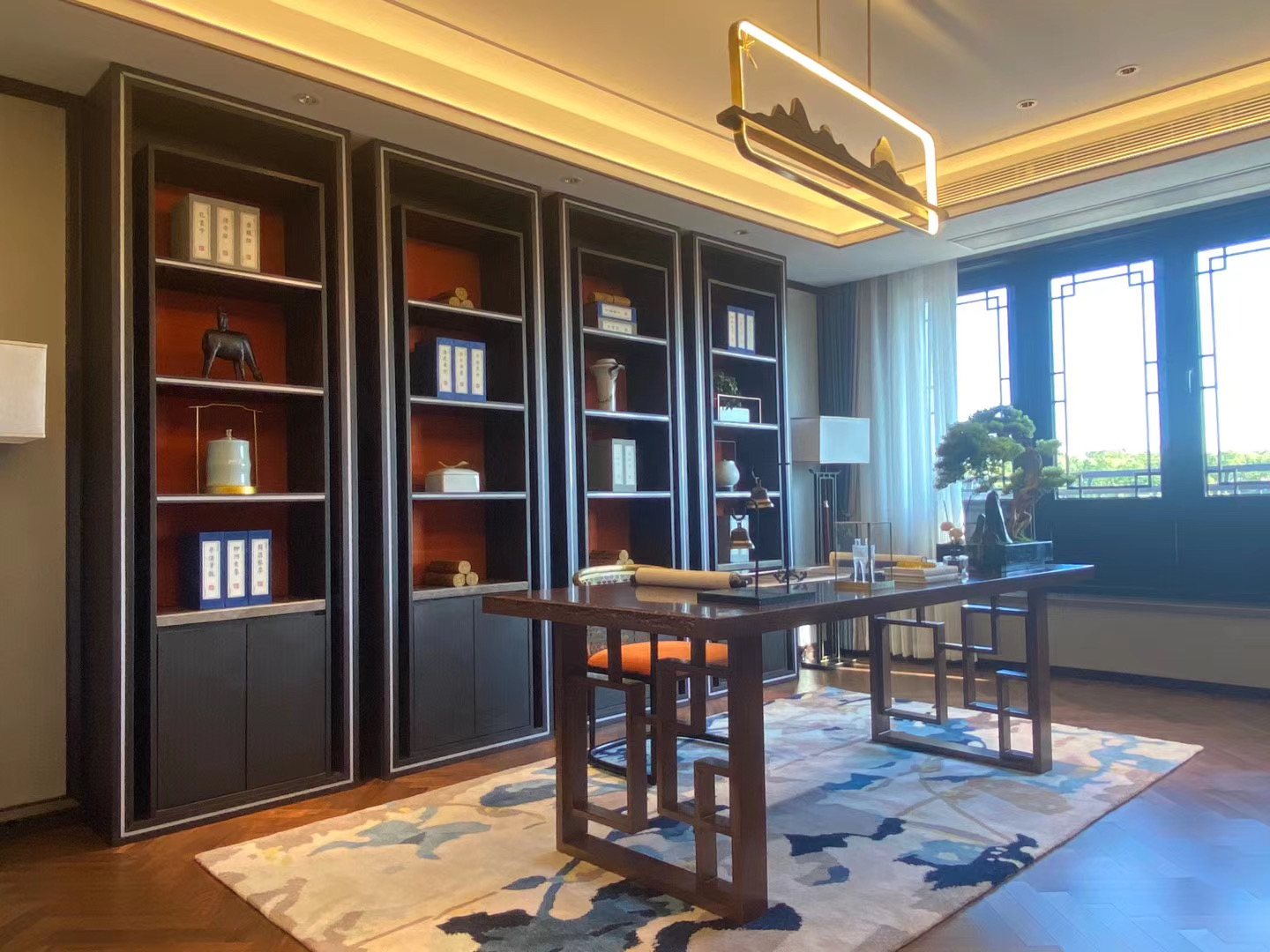

Ceiling LED strip lights, shelf lights and pendant lighting
The VIP room uses layered lighting for the ceiling, cabinets and table area. Ceiling LED strip lights installed in aluminum profiles provide soft ambient illumination. The cabinet shelves use recessed 10 × 10 shelf lights, while a decorative pendant light above the table creates a warmer focal point.
Separating the lighting functions allows the room to support reception, conversation and relaxation without relying on a single light source.
- Application: VIP room ceiling, cabinets and table area
- Lighting focus: ambient light, shelf illumination and warm focal lighting
- Lighting combination: ceiling LED strips, recessed 10 × 10 shelf lights and decorative pendant lighting

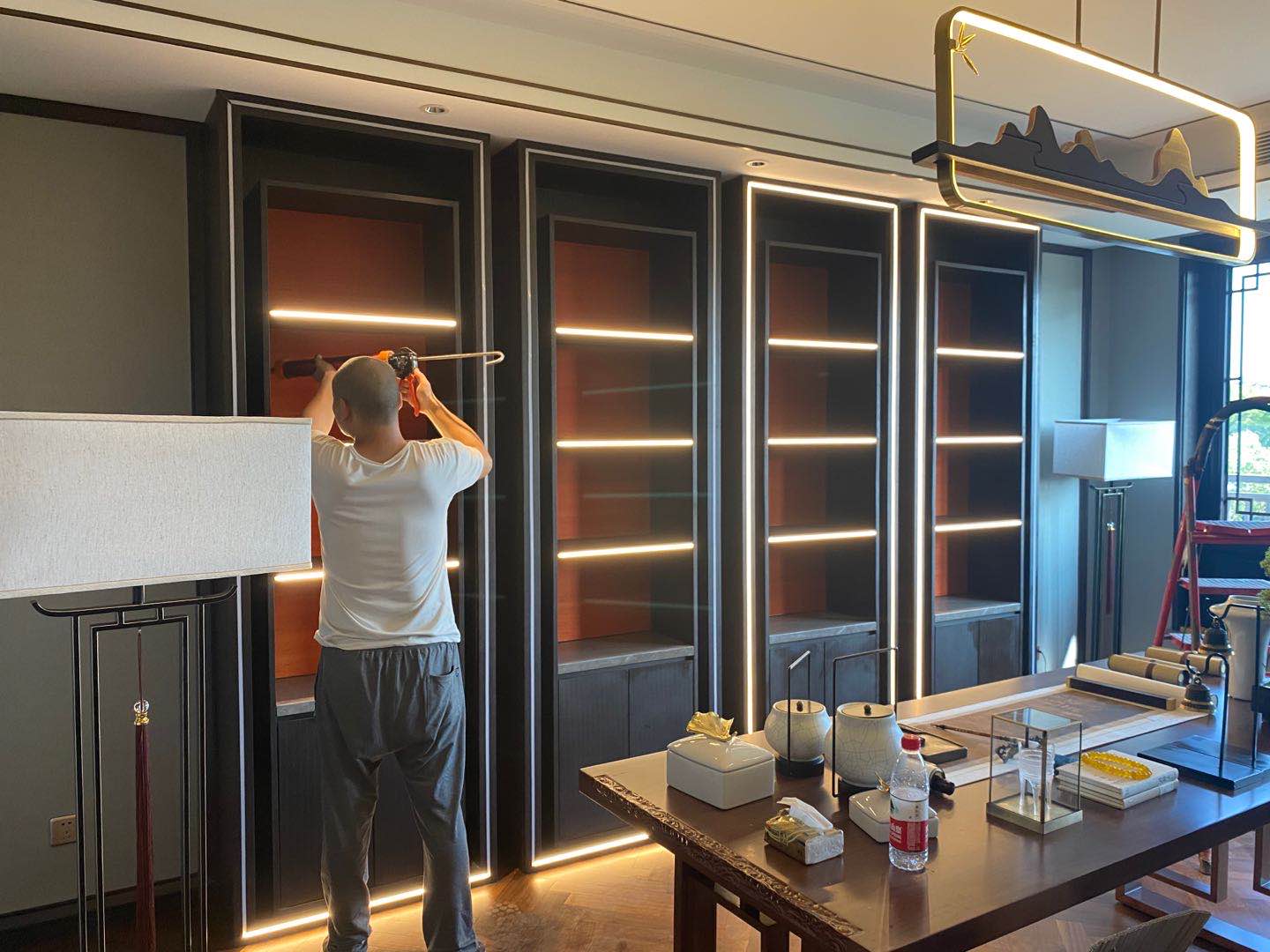

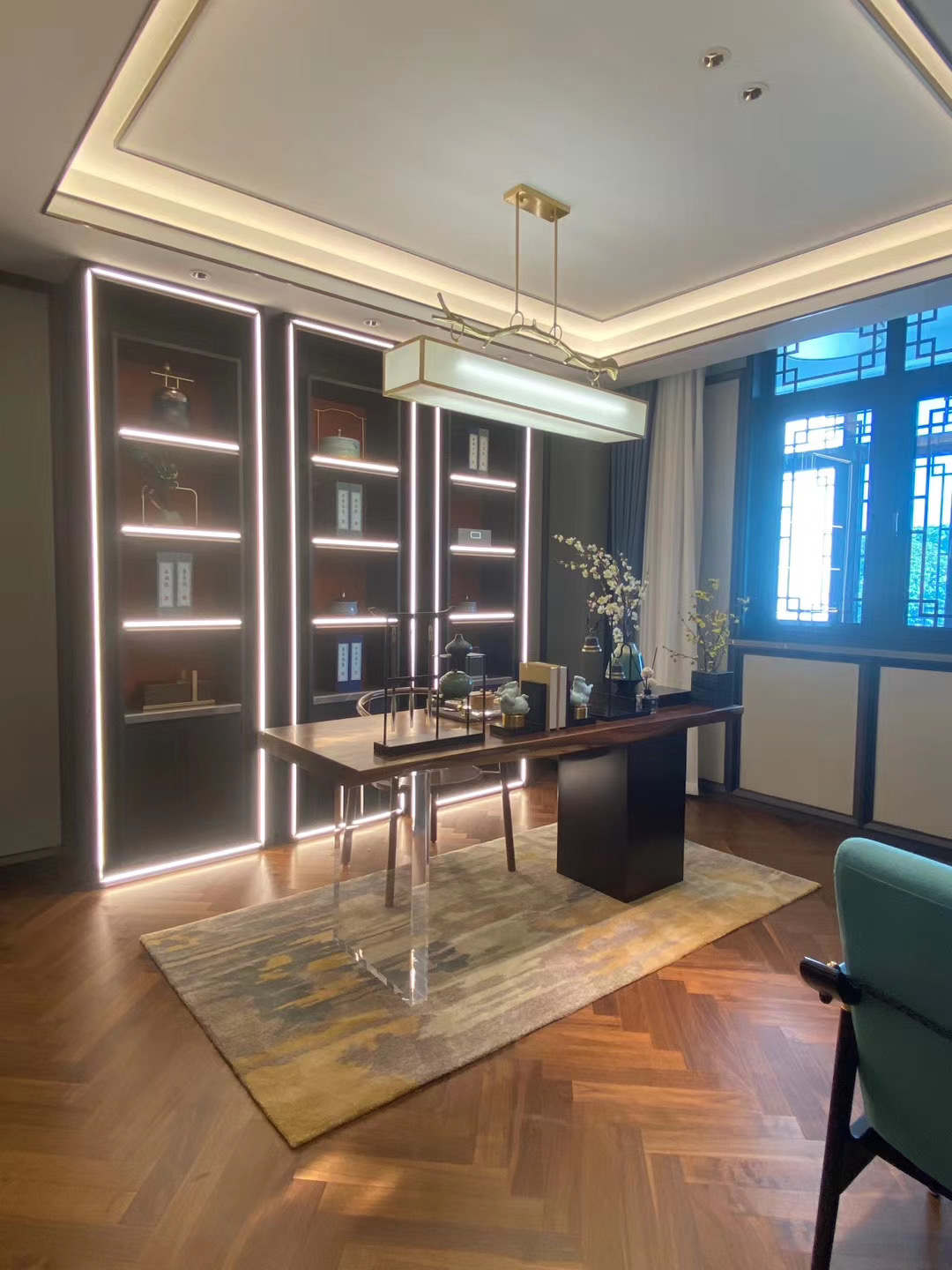

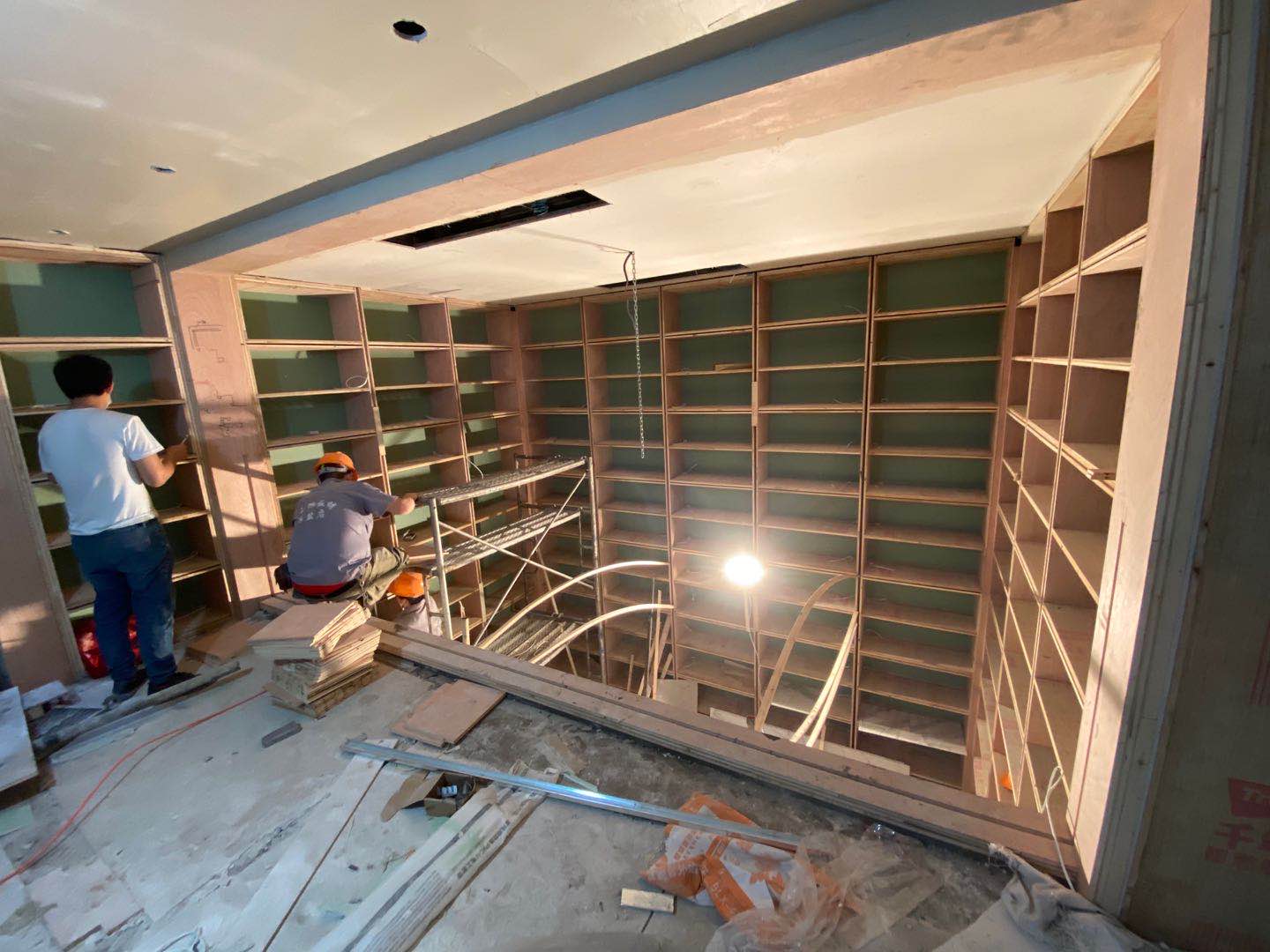

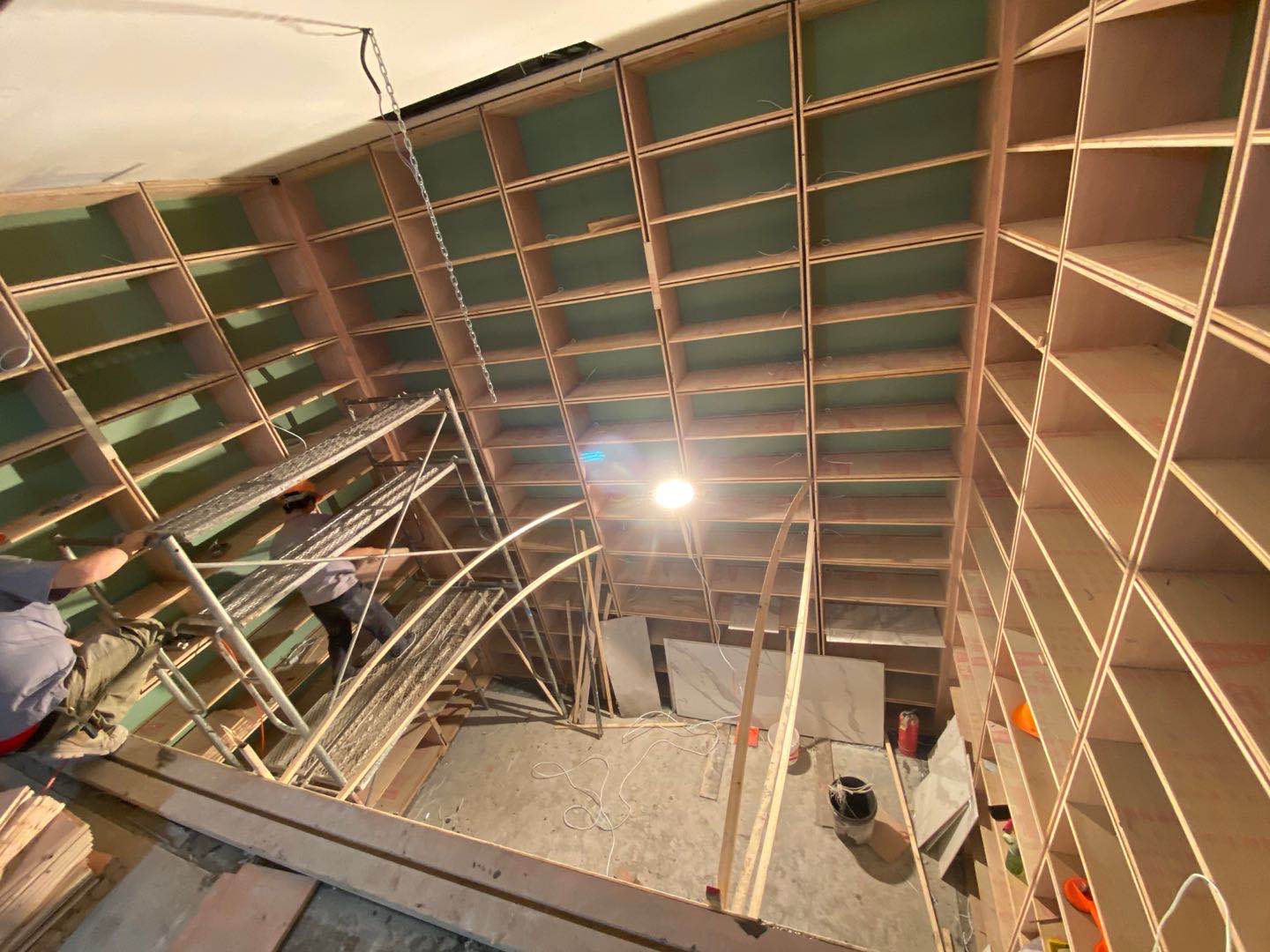

Reserved structures for concealed LED strip lighting
The ceiling and cabinet structures were prepared in advance for LED strip lights, aluminum profiles and recessed fixtures. Groove dimensions, profile positions, shielding depth, wiring and maintenance access need to be confirmed during the carpentry and electrical installation stages.
Early coordination helps prevent insufficient installation space, exposed profiles, unsuitable light positions and inconvenient maintenance after the ceiling and cabinets are completed.
- Application: ceiling, cabinet and recessed fixture installation areas
- Project focus: reserved dimensions, concealed installation, wiring and maintenance access
- Project note: the installation structure directly affects the final lighting line and finished appearance
Recessed spotlights for selected areas
Recessed LED spotlights supplement the ambient light from the LED strips and decorative pendant lights. They can be positioned to strengthen illumination in selected areas and add another layer to the overall lighting arrangement.
Spotlight wattage, beam angle, color temperature and installation position should be confirmed according to ceiling height, fixture spacing, the illuminated target and surrounding surface materials.
- Application: supplementary ceiling lighting
- Lighting focus: localized brightness, focal emphasis and layered illumination
- Product type: recessed LED spotlights
Lighting Products and Project Support
The main lighting types involved in this project include LED strip lights, aluminum profiles and diffusers, recessed shelf lights, recessed LED spotlights and decorative pendant lighting. Product specifications should be confirmed according to the cabinet structure, ceiling construction, installation dimensions, ceiling height, target brightness, CCT, CRI, beam angle and control requirements.
FANSEN can review floor plans, reflected ceiling plans, cabinet drawings, installation details or site photos to assist with fixture selection, specification confirmation, samples, OEM/ODM requirements and production planning. Available support may include LED strip voltage and wattage selection, spotlight beam-angle recommendations, profile coordination, sample confirmation, custom finishes, logos, packaging and delivery arrangements.
