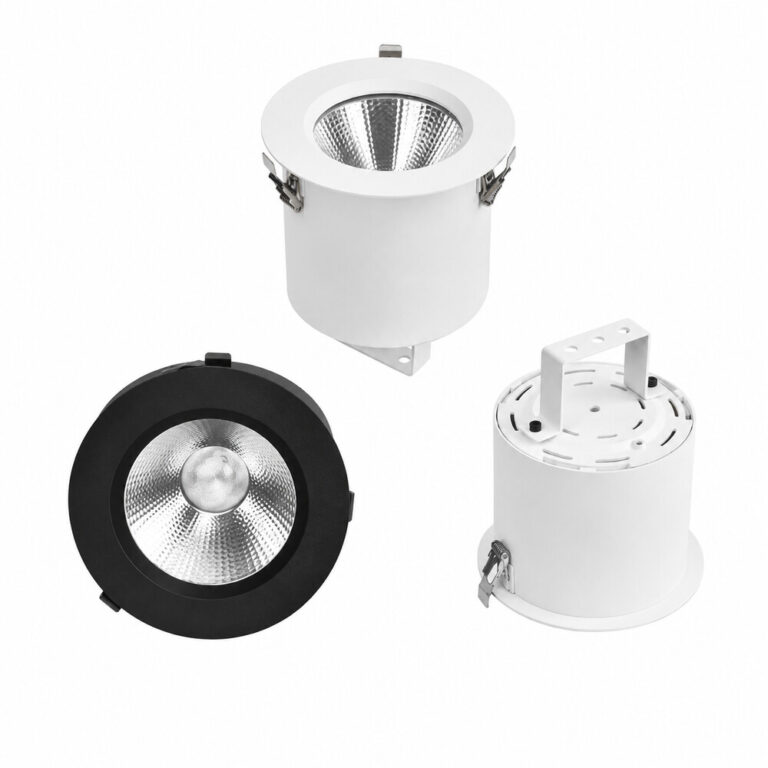

IP65 High-Ceiling Recessed LED Downlight 60W-150W FST-HY-RH02
Product Specifications
| Installation | Recessed |
|---|---|
| Application | High-Ceiling Commercial / Retail / Exhibition Hall / Public Space |
| IP Rating | IP65 |
| Recommended Power | 60W / 80W / 100-120W / 150W |
| Feature | Waterproof Housing / Large Cut-Out Options / Black & White Finishes |
Product Overview
Where This IP65 Recessed Downlight Works Best
FST-HY-RH02 is a high-power recessed LED downlight for high-ceiling commercial projects requiring IP65 protection. Its spring-mounted housing and large cut-out sizes suit retail spaces, exhibition halls, airports and other public interiors where high output and protected installation are required.
Four sizes cover 60W, 80W, recommended 100-120W and 150W configurations. Black and white housing finishes are available to suit different project requirements.
How to Select the Size, Cut-out and Power
| Product size | Cut-out | Power option |
|---|---|---|
| Ø190 × H150 mm | Ø175 mm | 60W |
| Ø210 × H170 mm | Ø195 mm | 80W |
| Ø230 × H190 mm | Ø215 mm | 100-120W |
| Ø260 × H235 mm | Ø235 mm | 150W |
Confirm the ceiling opening, installation depth, fixture spacing and required illuminance before selecting a model. The final LED board, driver and wattage must be verified through sample and thermal testing.
Standard Configuration and Custom Options
| Beam options | 38° / 60° / 90° |
|---|---|
| Protection rating | IP65 |
| LED options | OSRAM or other LED options |
| Driver | Custom driver |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6000K |
| CRI | CRI ≥90 |
| Input voltage | AC 100-277V customizable |
| Dimming | Non-dimmable |
| Finish shown | Black / White |
| Warranty | 3 years |
What to Confirm Before Ordering
- Ceiling cut-out and available installation depth
- Housing size and selected wattage
- 38°, 60° or 90° beam angle
- Required LED brand, CCT and CRI
- Driver size, input voltage and installation space
- Black or white housing finish
- Sample quantity, packaging and delivery schedule
Frequently Asked Questions
Is the listed power a fixed tested value?
The listed wattage must be matched with the selected LED board, driver and thermal design. Final configuration should be verified through sample and thermal testing.
Which cut-out sizes are available?
The listed ceiling cut-outs are Ø175 mm, Ø195 mm, Ø215 mm and Ø235 mm.
Which beam angles are available?
Beam angles of 38°, 60° and 90° are available.
Can the LED source and driver be customized?
Yes. OSRAM or other LED options and a custom driver can be specified according to project requirements.
Can I order a sample?
Yes. A sample is recommended to confirm cut-out, installation depth, wattage, thermal performance and beam angle before bulk production.
View High-Ceiling Commercial Downlights or send your project requirements to FANSEN Lighting for model matching and a sample quotation.
