Trimless Recessed Anti-Glare LED Spotlight FST-TR-DL06
Product Overview

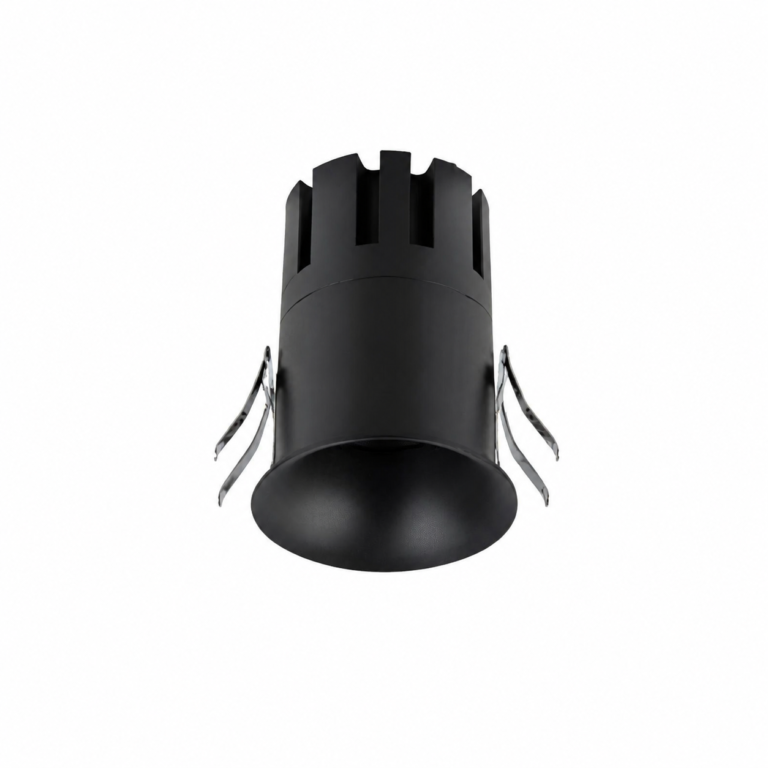

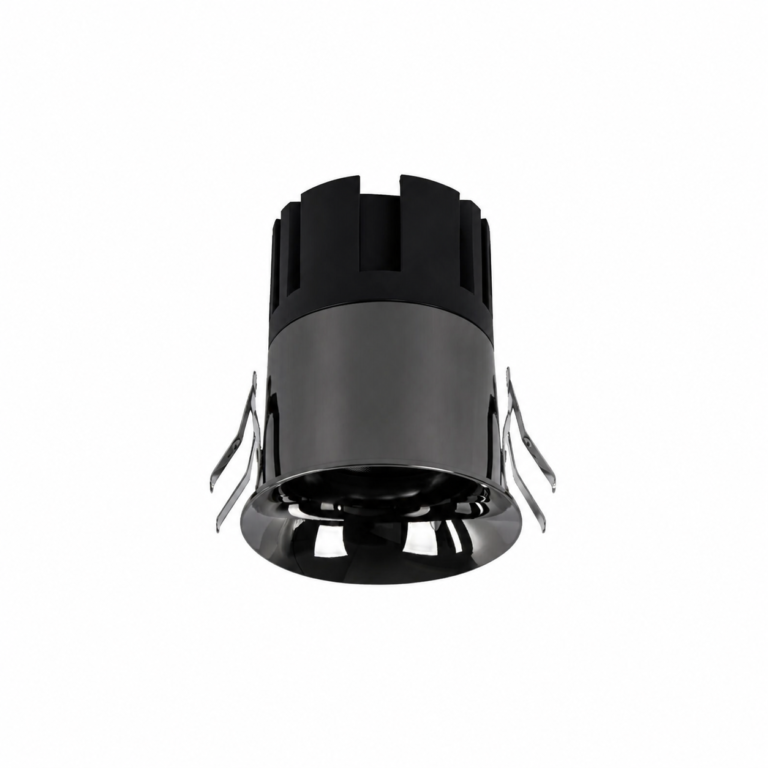

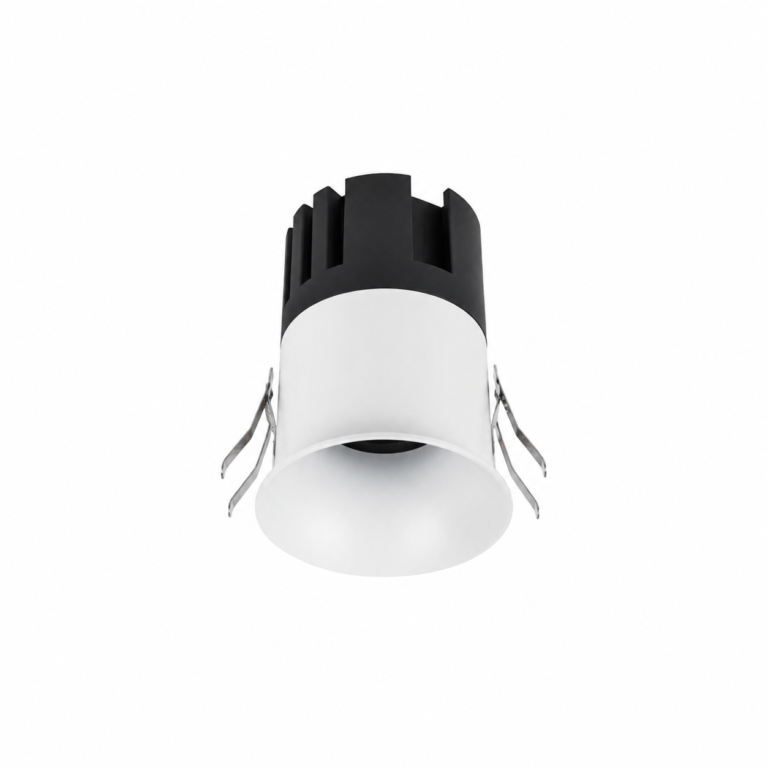

FST-TR-DL06 is designed for interiors where the ceiling should look clean and the light source should remain less noticeable. After the trimless mounting frame is finished into the ceiling, the visible border is minimized and the deep reflector helps shield the light source from normal viewing angles. The series covers cut-outs from 30 mm to 60 mm and power options from 3W to 20W. Beam angles range from very narrow 5° accents to wider 60° distributions, allowing the fixture to be matched to small displays, artwork, tables, corridors or broader lighting zones. Matte white, gunmetal black and matte black finishes are available.
6
Size / Cut-out / Power Options
Where This Trimless Spotlight Works Best
FST-TR-DL06 is suited to villas, apartments, hotel rooms, restaurants, boutiques, galleries and other interiors where a clean ceiling line is part of the design. The trimless installation reduces the visible edge around the fitting, while the recessed reflector helps keep direct brightness out of the normal line of sight.
This model is available in several diameters and heights. Shorter versions are useful when ceiling depth is limited, while the deeper versions provide more shielding around the light source. The exact body size should therefore be selected together with the ceiling structure, required power and desired visual comfort.
How to Select the Size and Beam Angle
| Project requirement | Selection guidance |
|---|---|
| Small niche, cabinet display or decorative detail | Check the 30 mm cut-out models from 3W to 9W and confirm whether a narrow beam is appropriate for the target. |
| Residential room, hotel room or corridor | Compare the 40 mm and 50 mm cut-out versions according to ceiling depth, fixture spacing and required brightness. |
| Retail, restaurant or gallery accent lighting | The 50 mm and 60 mm cut-out options provide higher-output choices up to 20W. |
| Very small object or long-distance accent | Use 5°, 8° or 10° only after checking the target size and throw distance; these angles create a concentrated beam. |
| Artwork, display or focused residential lighting | 15° or 24° is often a practical starting point, subject to an on-site beam check. |
| Wider and softer coverage | Compare 36°, 45°, 50° and 60° according to fixture spacing and the area that needs to be illuminated. |
For a trimless fitting, the mounting frame and ceiling finishing sequence are as important as the electrical installation. Confirm the sample and installation method before the ceiling surface is completed.
What to Confirm Before Ordering
- Required product diameter, cut-out and available ceiling depth
- Trimless mounting frame and ceiling finishing method
- Power, beam angle and distance from the light to the target
- Matte white, gunmetal black or matte black finish
- Input voltage, CCT, CRI and driver requirement
- Room dimensions, fixture quantity and spacing
- Sample requirement, project quantity, packaging and delivery schedule
Frequently Asked Questions
What is the difference between trimless and trimmed installation?
A trimless spotlight is finished into the ceiling so there is no conventional visible outer rim. It creates a cleaner appearance but requires the mounting frame and ceiling finish to be coordinated during installation.
Does the deep reflector remove glare completely?
The recessed optical position helps reduce direct glare from normal viewing angles, but visual comfort also depends on the beam angle, mounting position, aiming direction, ceiling height and room layout.
Which cut-out sizes are available?
The series includes 30 mm, 40 mm, 50 mm and 60 mm cut-outs. Some cut-outs have two body heights and different power ranges, so the full product dimensions should be checked before ordering.
Which finish should I choose?
Matte white blends more easily with a light-colored ceiling. Gunmetal black and matte black create a darker optical appearance. The final choice should follow the ceiling color and interior material palette.
Can I order a sample before the ceiling is finished?
Yes. For trimless products, sample checking is recommended before ceiling finishing so the opening, mounting frame, installation depth, beam angle and appearance can all be confirmed.
For a conventional trimmed installation, compare the trimmed deep anti-glare spotlight FST-SP-YMYB. For adjustable lighting across a wider power range, see FST-HY01.
View More LED Spotlights or send your ceiling detail, room dimensions and lighting requirements to FANSEN Lighting for model matching.
