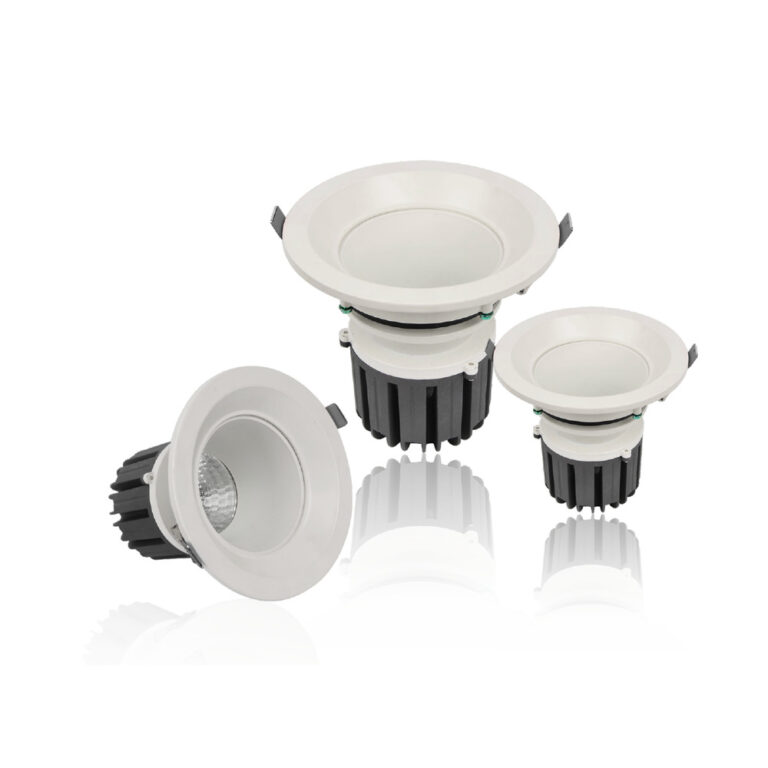

Deep-Baffle Commercial LED Downlight 10–45W
Product Overview
The FST-HY-HC06 is a fixed recessed commercial LED downlight with a deep baffle that places the light source farther inside the ceiling. This structure reduces direct view of the LED and keeps the light directed downward. The 10W to 25W options suit standard commercial interiors, while the larger 35W and 45W versions are intended for higher mounting positions and spaces requiring more light output.
14

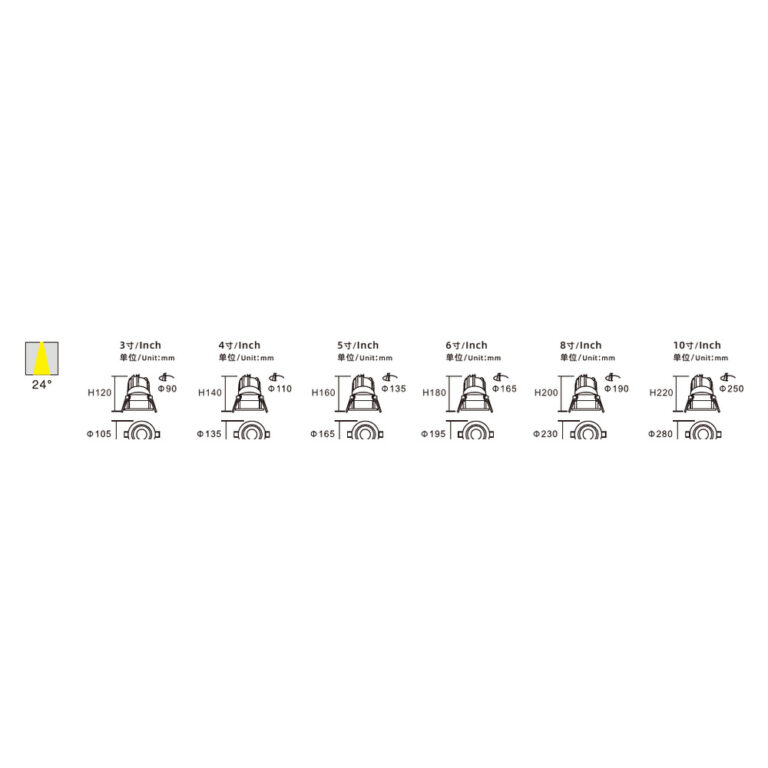

Size / Cut-out / Power Options
Where This Deep-Baffle Downlight Works Best
FST-HY-HC06 is intended for retail stores, hotel lobbies, shopping malls, exhibition areas and public interiors that need downward commercial lighting with the light source positioned deeper inside the ceiling. The baffle shields the LED from normal viewing angles and helps reduce direct brightness.
Six housing sizes cover 10W to 45W. Smaller versions suit conventional commercial ceilings, while the 35W and 45W models provide larger apertures and higher output for taller spaces.
How to Select the Size and Power
| Project condition | Selection guidance |
|---|---|
| Standard retail or hotel ceiling | Compare the 10W and 15W models with 90 mm, 110 mm or 135 mm cut-outs according to spacing and required brightness. |
| Medium commercial area | The 25W version uses a 165 mm cut-out and 180 mm product height; confirm the ceiling cavity before selection. |
| Large lobby or higher mounting position | Review the 35W and 45W versions after checking ceiling height, room area and target illuminance. |
| Precise downward commercial lighting | The listed 24° beam provides a focused distribution; spacing should be checked to avoid dark gaps between fixtures. |
The deeper body improves shielding but also requires more ceiling depth. Confirm the complete product height and ventilation space, not only the cut-out diameter.
What to Confirm Before Ordering
- Ceiling height, room area and target illuminance
- 90–250 mm cut-out and 120–220 mm product height
- 10W, 15W, 25W, 35W or 45W power
- 24° beam suitability and fixture spacing
- Input voltage, CCT, CRI and driver requirement
- Dry indoor installation, as the listed rating is IP20
- Sample quantity, project quantity, packaging and delivery schedule
Frequently Asked Questions
What does the deep baffle do?
It positions the LED farther inside the ceiling, reducing direct view of the light source from normal angles. The final visual comfort still depends on ceiling height, fixture position and room layout.
Why do the two 15W versions have different sizes?
They use different housing and cut-out sizes: 110 mm and 135 mm. Select the version that matches the required aperture, ceiling detail and optical configuration.
Is 45W suitable for every high ceiling?
No. Wattage should be selected from the ceiling height, target illuminance, room area, beam angle and fixture spacing. A lighting calculation is recommended.
Can this downlight be used outdoors?
No. The listed rating is IP20, so it is intended for dry indoor locations.
Can I order a sample?
Yes. A sample can confirm the cut-out, installation depth, shielding, beam effect, light color and driver before bulk production.
For a similar deep-baffle design with a spiral-fin housing, compare FST-HY-HC07. For a wider-aperture product family up to 120W, see FST-HY-HC08.
View More High-Ceiling Commercial Downlights or send your ceiling height and lighting plan to FANSEN Lighting for model matching.
