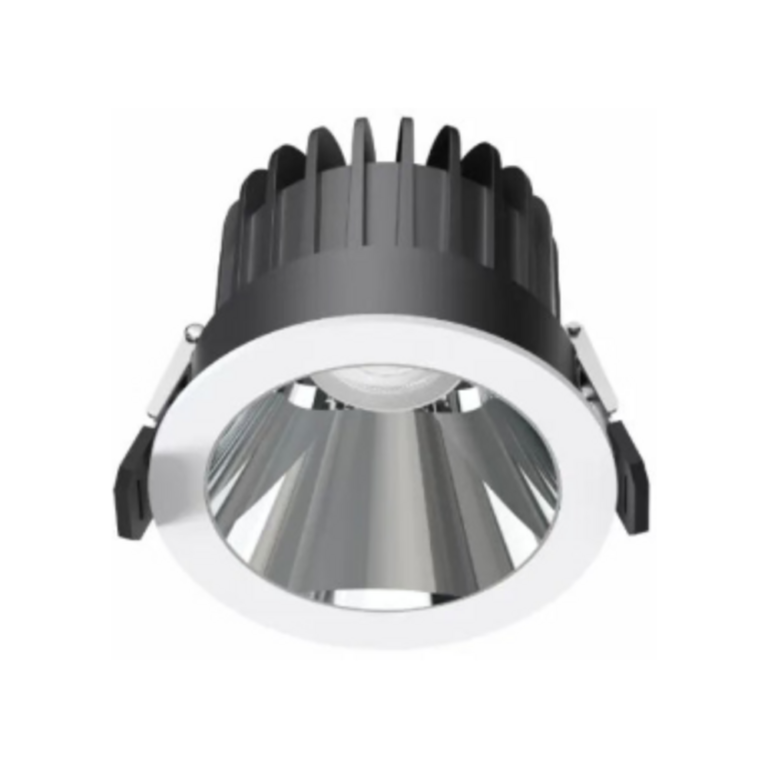

IP54 Recessed LED Downlight FST-YX-DLXLD
Product Specifications
| Installation | Recessed |
|---|---|
| Application | Bathroom / Kitchen / Balcony |
| IP Rating | IP54 moisture-resistant |
| Power | 10W / 15W / 20W |
| Control Option | ON/OFF / Tuya Smart / 0-10V / DALI Optional |
Product Overview
FST-YX-DLXLD is an IP54 moisture-resistant recessed LED downlight for bathrooms, kitchens, covered balconies, washrooms, hotel rooms and similar humid indoor ceiling areas. It is available in 10W, 15W and 20W with matching cut-outs of 75mm, 90–95mm and 120–125mm. The 60° beam provides wide coverage for general illumination. CCT, CRI, light source, driver and control options can be selected according to project requirements. The installation zone, ceiling opening, room dimensions and required moisture protection should be confirmed before ordering.

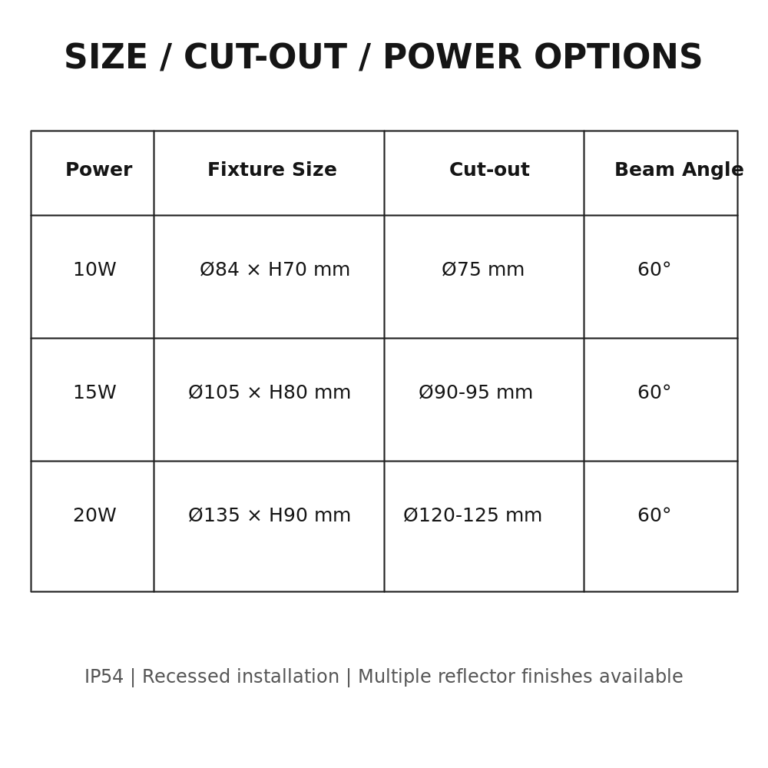

Size / Cut-out / Power Options
Where This IP54 Downlight Is Best Used
FST-YX-DLXLD is designed for humid indoor ceiling areas such as bathrooms, kitchens, covered balconies, washrooms and hotel rooms. Its IP54 configuration provides protection against dust ingress sufficient to prevent interference with operation and against splashing water.
IP54 does not mean the fixture can be submerged or exposed to direct water jets. The installation zone, local electrical requirements and actual exposure to moisture should be checked before selection.

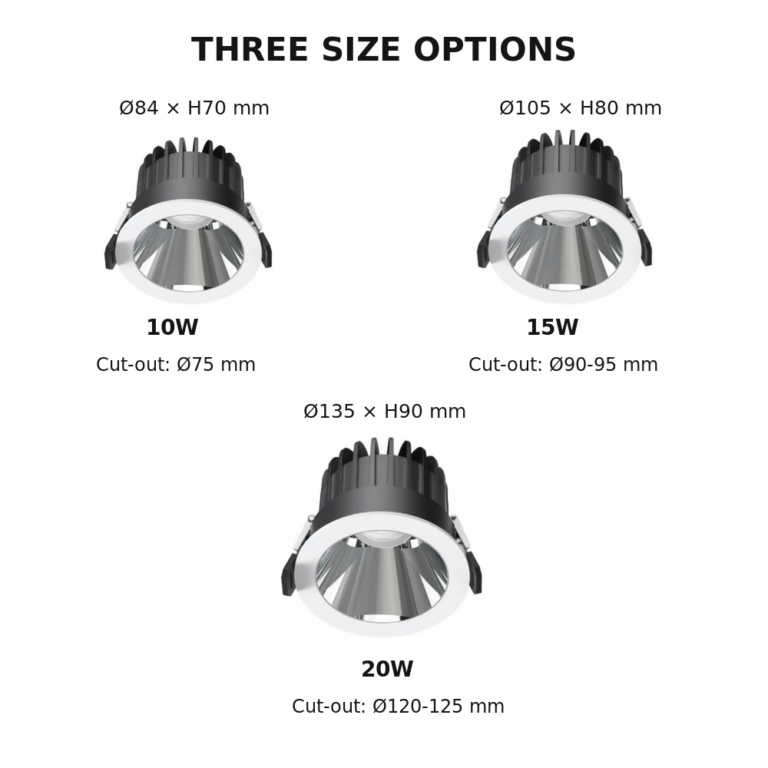

How to Select the Size and Power
| Project condition | Selection guidance |
|---|---|
| Small bathroom, washroom or compact ceiling zone | Start by checking the 10W model, Φ84 × 70 mm, with a 75 mm cut-out. |
| Medium bathroom, kitchen or hotel room | Compare the 15W model with a 90–95 mm cut-out according to room area and fixture quantity. |
| Larger humid indoor area | Review the 20W model with a 120–125 mm cut-out after checking ceiling height and lighting layout. |
| General lighting requirement | The 60° beam provides wide coverage; confirm spacing to avoid uneven brightness. |
| Smart or building-control project | Confirm ON/OFF, Tuya, 0–10V or DALI before sample production. |
Fixture quantity, spacing, ceiling height, surface reflectance and target illuminance should be considered together. Send the floor plan or room dimensions when model and quantity support is required.
What to Confirm Before Ordering
- Installation zone and whether IP54 is sufficient
- Existing cut-out, ceiling depth and driver space
- Room dimensions, ceiling height and fixture quantity
- Required power, CCT, CRI and 60° beam suitability
- Light source, driver and control configuration
- Input voltage and destination-market requirements
- Quantity, sample, packaging and delivery schedule
Frequently Asked Questions
Can this downlight be used in a bathroom?
It is intended for humid indoor areas, but the exact bathroom installation zone and local electrical requirements must be checked before selection.
What is the difference between IP54 and IP65?
IP54 provides a lower level of water protection than IP65. Select the rating according to the actual installation zone and exposure to moisture or water.
Does it support dimming?
ON/OFF, Tuya, 0–10V and DALI options can be discussed. The required method must be confirmed before sample production.
Can I order a sample first?
Yes. A sample can be used to confirm the cut-out, installation fit, CCT, CRI and selected control configuration.
For a wider IP44 product family, compare FST-YD-YW02. For surface-mounted IP65 installation, see FST-DL-XW03.
