Bauhaus Surface-Mounted LED Downlight 10W for Ceiling or Track Installation
Product Specifications
| Installation | Ceiling Surface Mount / Track Mount |
|---|---|
| Application | Residential / Hotel / Restaurant / Retail / Display Area |
| Power | 10W |
| Product Size | Ø70 × H100 mm |
| Beam Angle | 13° / 24° / 36° |
| Feature | High-Temperature-Resistant Driver / Branded LED Options |
Product Overview
Where This Surface-Mounted Downlight Works Best

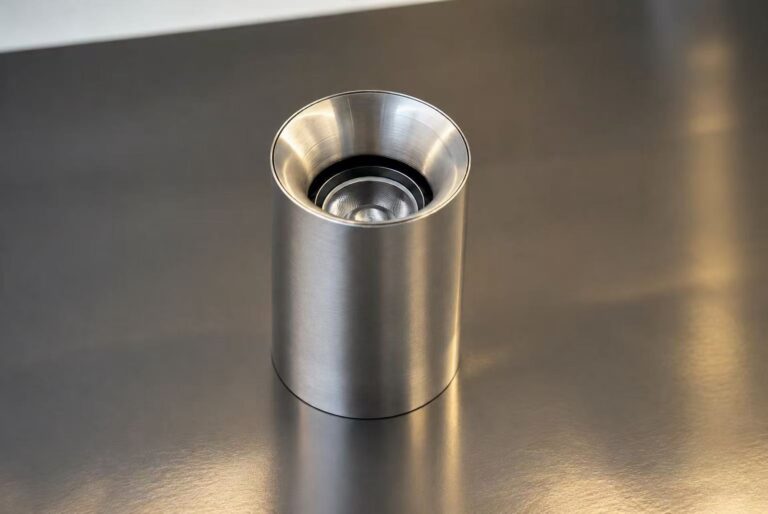

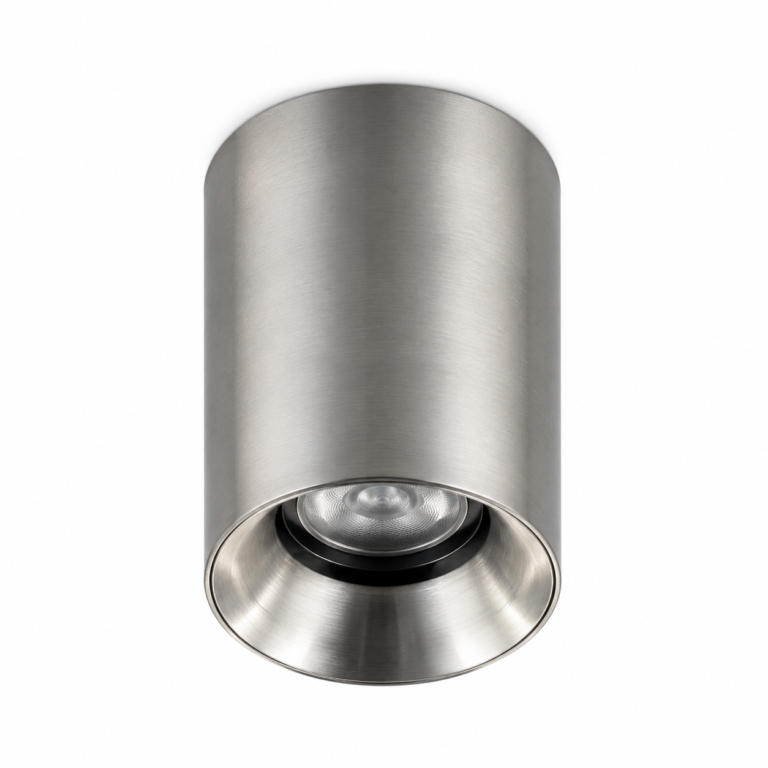

FST-SM-DL70 is a compact 10W cylindrical LED downlight for projects where recessed installation is not available or not preferred. The Ø70 × H100 mm housing can be installed directly on the ceiling or used on a track with a compatible adapter.
Its compact form and optional 13°, 24° or 36° beam angles suit residential rooms, hotel areas, restaurants, boutiques, display counters and other spaces requiring controlled accent lighting.
How to Select the Installation and Beam Angle
| Project requirement | Selection guidance |
|---|---|
| Direct installation on a solid ceiling | Select the ceiling surface-mount version. No ceiling cut-out is required, but the mounting base, input voltage and wiring position should be confirmed before ordering. |

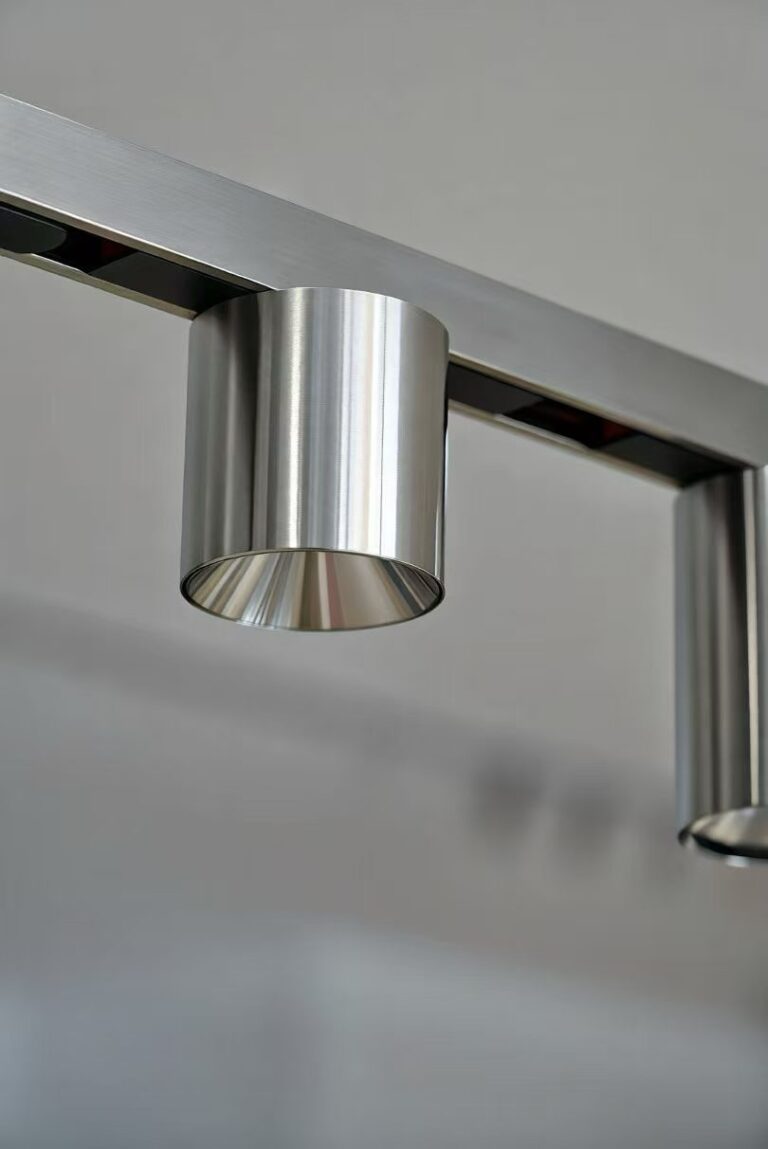

| Flexible positioning on a lighting track | Select the track-mounted version with a compatible adapter. Confirm the required track type before sample production. |
| Focused accent lighting | 13° provides a tighter beam for compact displays or more concentrated lighting. |
| General accent lighting | 24° is suitable for many residential, hospitality and retail accent-lighting applications. |
| Wider light coverage | 36° covers a broader area and can be considered for closer fixture spacing or larger targets. |
The final beam angle should be selected together with the installation height, target size, fixture spacing and required lighting effect.
Standard Configuration and Custom Options
| Standard model | 10W, Ø70 × H100 mm cylindrical housing |
|---|---|
| Beam angle options | 13° / 24° / 36° |
| Installation options | Ceiling surface mount / Track mount with compatible adapter |
| Driver | High-temperature-resistant driver design |
| LED source options | Bridgelux / Osram / Cree |

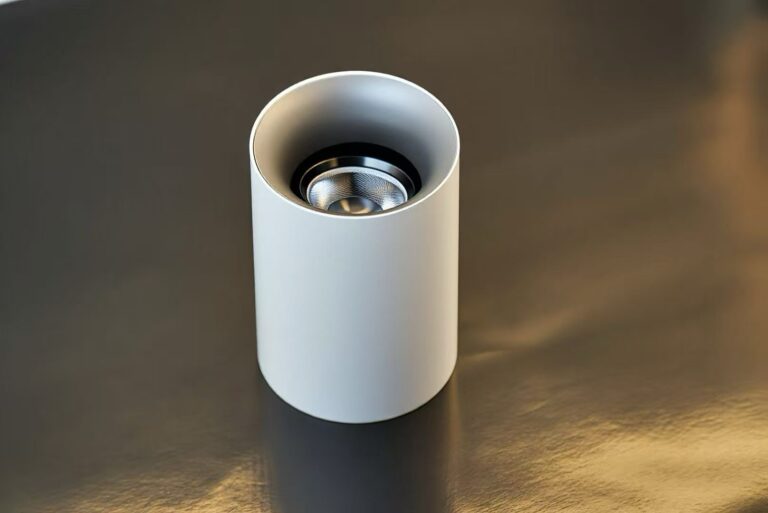

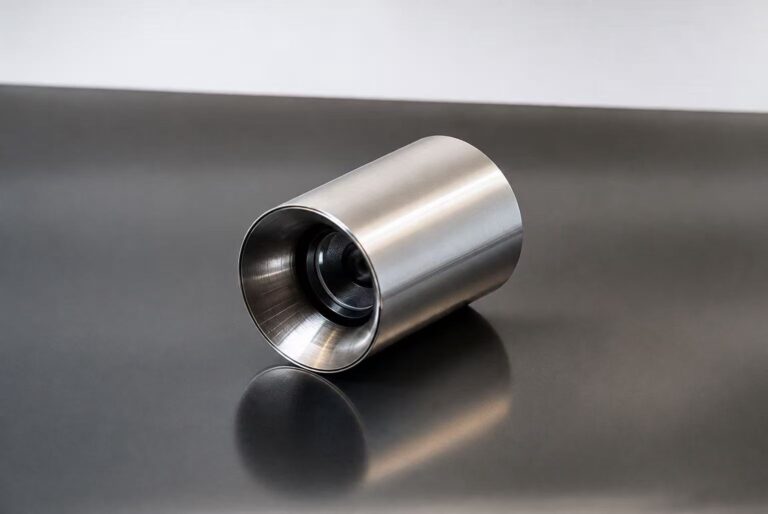

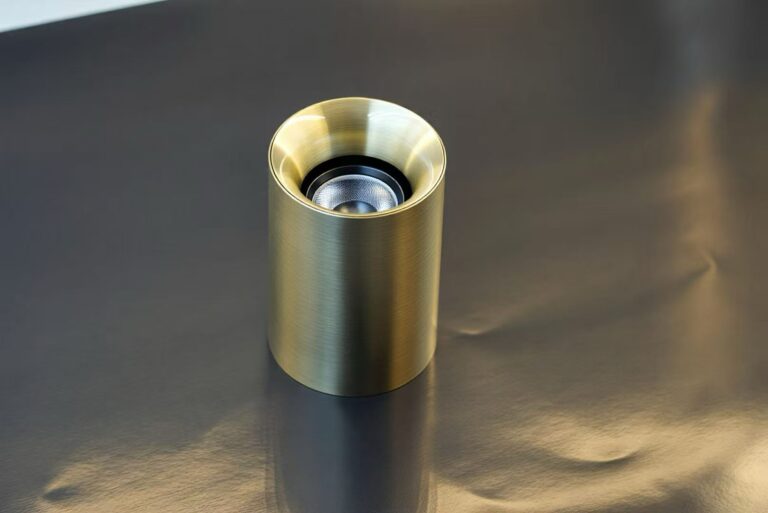

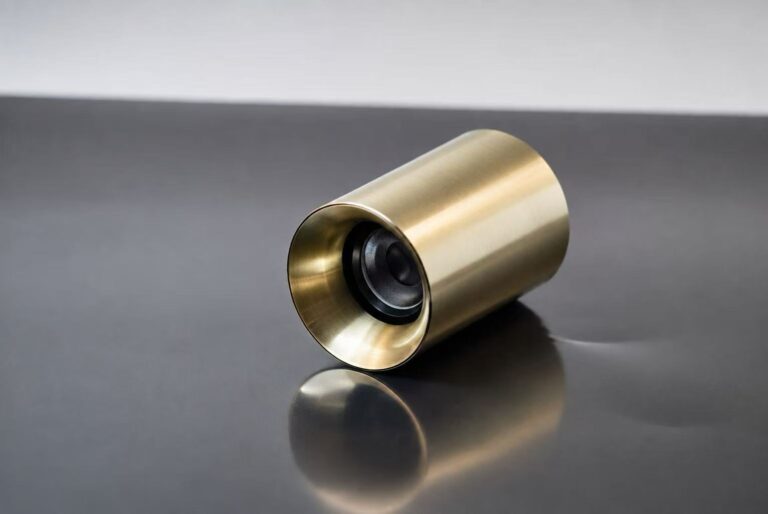

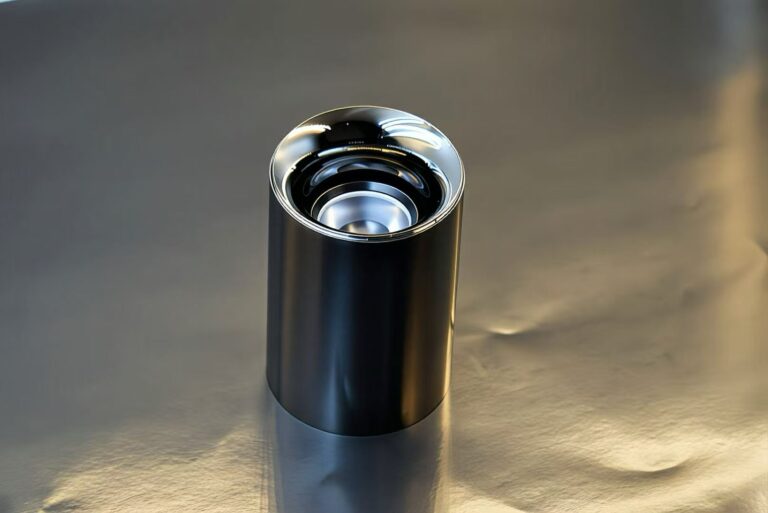

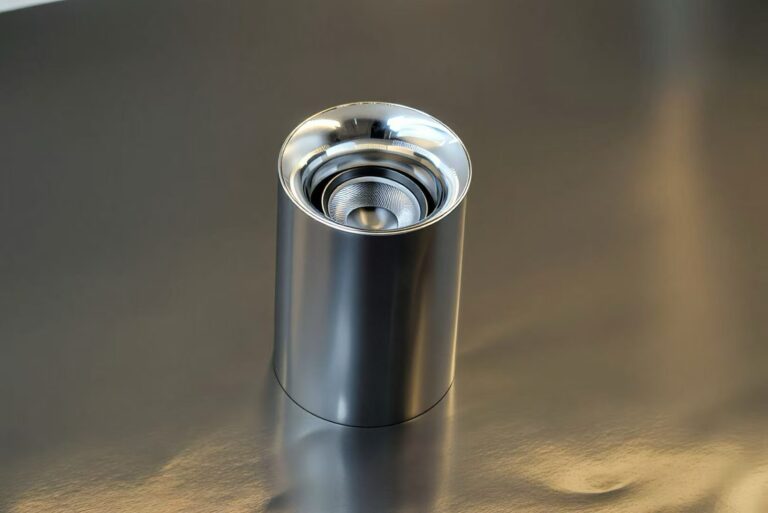

| Finish options shown | Silver / Gold / Black / White / Gunmetal |
What to Confirm Before Ordering
- Ceiling surface mounting or track mounting
- Required track type and compatible adapter, if track mounted
- 13°, 24° or 36° beam angle
- Required CCT and CRI
- Bridgelux, Osram or Cree LED source
- Housing finish
- Input voltage and wiring requirements
- Sample quantity, bulk quantity, packaging and delivery schedule
Frequently Asked Questions
Does this model require a ceiling cut-out?
No cut-out is required for direct surface mounting. Confirm the mounting base and wiring position before installation.
Can the same housing be used on a track?
Yes. A compatible track adapter can be selected for track-mounted installation. The required track type should be confirmed before ordering.
Which beam angles are available?
The available options are 13°, 24° and 36°. Select the angle according to the installation height, target size and required coverage.
Which LED source brands can be selected?
Bridgelux, Osram and Cree LED options are available according to project requirements. Confirm the exact brand and lighting specification before sample production.
Can I order a sample before the bulk order?
Yes. A sample can be used to confirm the installation accessory, beam angle, light color, finish and overall lighting effect before bulk production.
View More LED Downlights or send your project requirements to FANSEN Lighting for model matching and a sample quotation.
