220V Internal Driver Square Adjustable LED Track Light FST-HYTR01
Product Overview
Where This Square Track Light Works Best

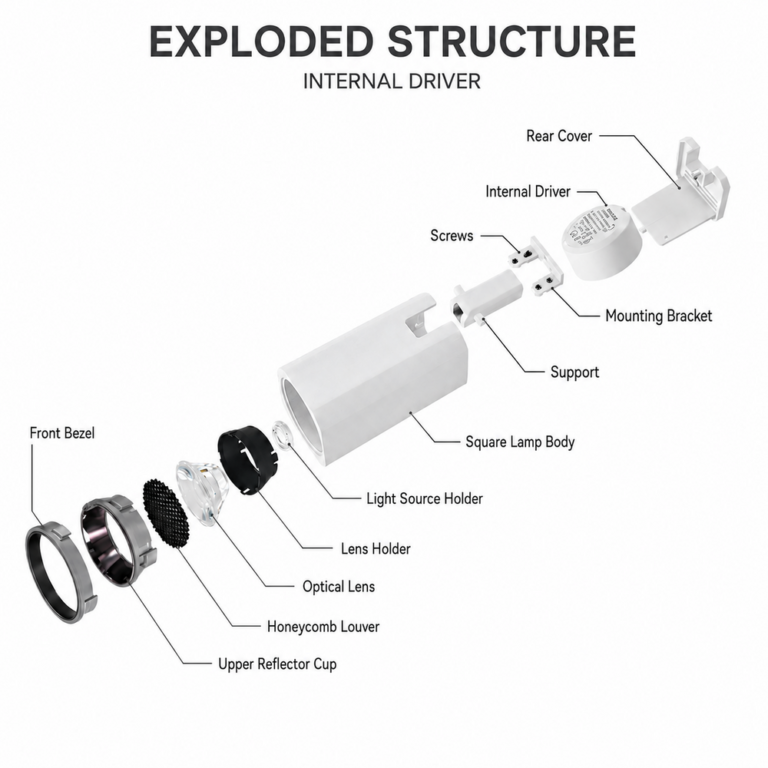

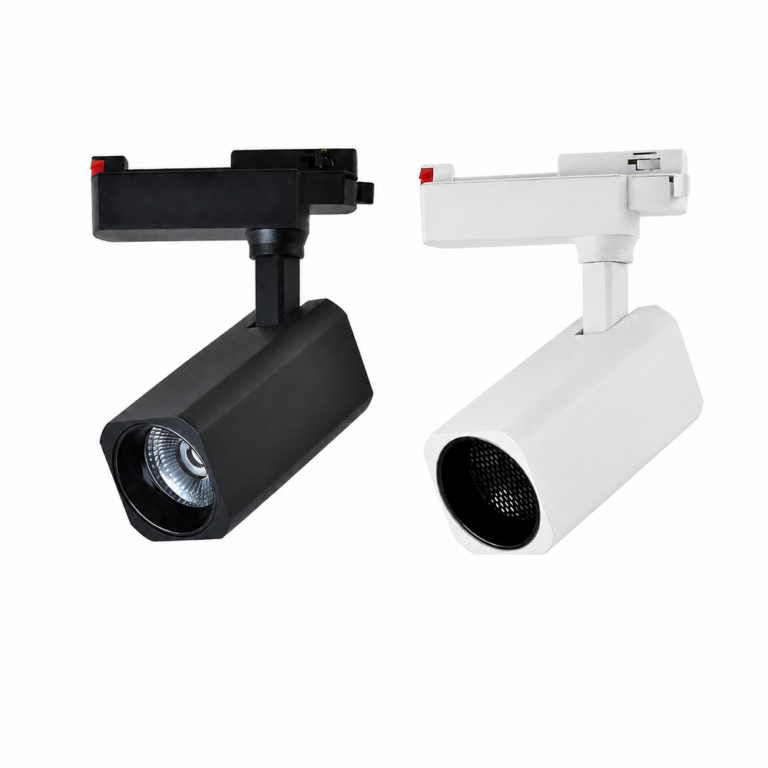

FST-HYTR01 is a 220V square adjustable LED track light with the driver integrated inside the track adapter. This all-in-one structure keeps the installation visually compact and avoids a separate external driver arrangement. The square housing suits modern retail stores, showrooms, hotel public areas, galleries and commercial interiors with clean architectural lines.
The product family covers 15W, 20W, 25W and 35W. Black and white finishes are available, together with Ra90 or Ra97 color rendering. Depending on the project, the fixture can use OSRAM, CITIZEN or Bridgelux LED sources and 15°, 24°, 36° or 60° beam angles.
How to Select the Configuration
| Item | Available Options | Selection Guidance |
|---|---|---|
| Power | 15W, 20W, 25W, 35W | Match the power to the mounting height and target illuminance. Use photometric or sample testing for projects with strict lighting requirements. |
| Beam angle | 15°, 24°, 36°, 60° | Choose a narrow beam for focused objects and a wider beam for shelves, circulation areas or softer coverage. |
| CRI | Ra90 or Ra97 | Ra90 covers most retail and hospitality use. Ra97 gives more accurate color presentation for premium displays. |
| CCT | 2700K–6500K | Select according to the material colors, brand atmosphere and surrounding lighting. |
| Finish | Black or white | Match the finish with the track, ceiling and interior color scheme. |
What to Confirm Before Ordering
- Track standard and 220V system compatibility.
- Required power and corresponding housing size.
- Beam angle, mounting height and target area.
- Color temperature, CRI and LED source.
- Black or white finish and power-factor requirement.
- Quantity and any OEM logo, label or packaging request.
If a round external-driver structure is preferred, compare the FST-HYTR03 round track light. For a small-aperture rectangular optical design with internal and external versions, see the FST-HYTR05 track light. You can also browse the complete track lighting category or contact FANSEN for sample and project support.
Frequently Asked Questions
What is the advantage of an internal driver?
The driver is housed inside the track adapter, creating a compact integrated installation. It is useful when the project prefers a clean all-in-one fixture structure.
Can this track light be used for both accent and general lighting?
Yes. Narrow beam angles are used for accent lighting, while 36° or 60° can provide broader coverage. The final choice should consider spacing and mounting height.
Can the beam direction be adjusted?
Yes. The head can be aimed toward merchandise, artwork or architectural features and readjusted when the layout changes.
Can I confirm the light effect with a sample?
Yes. A sample is recommended to verify the beam, color temperature, brightness and finish before bulk production.
How long does a bulk order take?
Typical production time is around 1–4 weeks after the final specification is approved. Customized labels or packaging may require additional preparation time.
