SMD2835
120LED/M
IP44

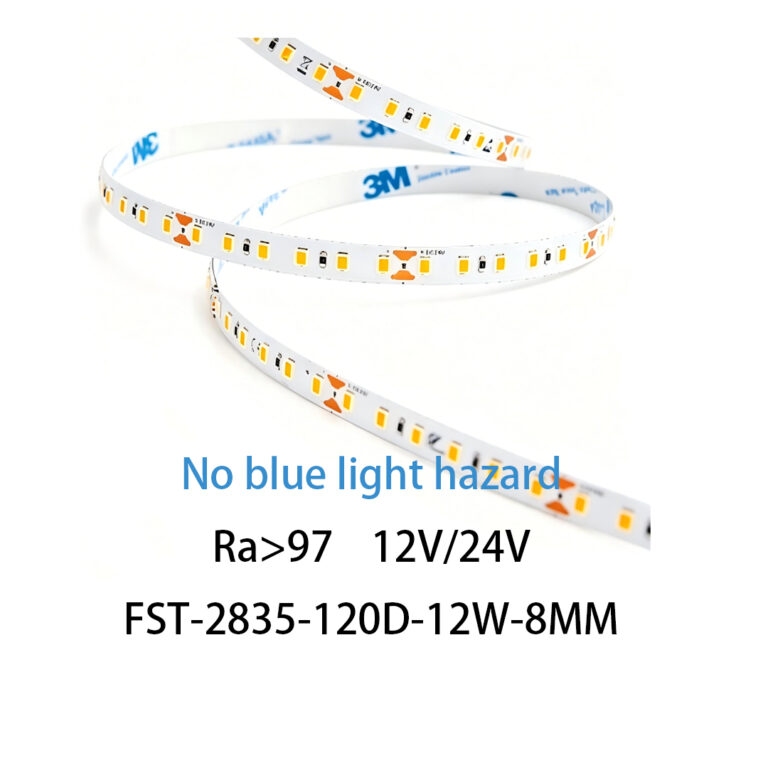

SMD2835 LED Strip Light

Brand
FANSHENTE
Model
FST-12-F1208/24-F1208
Type
SMD2835 LED Strip
Voltage
DC12V/24V
PCB Width
8mm
CRI
>97
Power
12W/M(Customizable)
Color Temp.
2400K-6500
Efficacy
103lm/W
Luminous Flux
1483Im/M
Cutting Unit
25mm/50mm
IP Rating
IP20/IP44/IP65/IP67
LED Spacing
8.33mm
Warranty
3Years
Size
L5000*W8*H1.5mm

Product Description

Introducing the F1M-D62X140 Modular Series Integrated LED Track Light, a compact and flexible lighting solution designed for modern commercial interiors. With a power range of 10-15W, this integrated LED track light is ideal for retail stores, galleries, showrooms, hotels, offices, and other spaces requiring clean design and precise accent lighting.

The F1M-D62X140 Modular Series Integrated LED Track Light features a modular optical design with lens and reflector options. Multiple beam angles of 15°, 24°, 38°, and 60° allow lighting designers to create focused accent lighting, display lighting, or wider illumination for different project needs.

This series supports high-quality LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control options, including DALI, TRIAC, 0/1-10V, ZigBee, BLE, 2.4G/RF, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors looking for a compact and modular track lighting solution, the F1M-D62X140 Modular Series Integrated LED Track Light offers a practical combination of flexible control, professional optical performance, and clean architectural design.

F1M-D62X140 Modular Series Integrated LED Track Light
Product code XH-TL-10W-F1M XH-TL-15W-F1M
Power 10W 15W
Driver Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud
Voltage AC200-240V, AC100-240V
Power factor PF>0.9
LED voltage DC36V
LED Current 250mA 350mA
Dimmable DALI, TRIAC, 0/1-10V, ZigBee, BLE, 2.4G, DMX
Color output Single color, TW, DTW, RGB, RGBW, RGBCW
Materials ADC12 Die cast Aluminum
Size D62xH140mm
Adapter brand Global, Powergear, Unipro, STUCCHI, Eutrac
LED brand Citizen, Bridgelux, CREE, Philips, Luminus
CCT 2700K,3000K,3500K,4000K,5000K,6500K
CRI CRI80+, CRI90+, CRI95+, CRI98+
SDCM <3
Optics Mirror reflector/Lens
Beam angle 15°,24°,38°,60°
LED Efficiency LED lumen 110-200lm/W
Lamp Efficiency Lamp lumen 80-130lm/W
Protection IP20
Finish Matt White, Matt Black
Warranty 5 years

Size and Drawing

Dimming control

Application Scenario

Product List

Series Product No. Power LED Voltage Current Efficiency Dimension (DxL1/L2)
D62 Series XH-TL-10W-F1M 10W DC36V 250mA 100-130lm/W 62x140mm/185mm
XH-TL-15W-F1M 15W DC36V 350mA 100-130lm/W 62x140mm/185mm
D85 Series XH-TL-25W-F1M 25W DC36V 600mA 100-130lm/W 85x170mm/200mm
XH-TL-30W-F1M 30W DC36V 700/750mA 100-130lm/W 85x170mm/200mm
XH-TL-35W-F1M 35W DC36V 800mA 100-130lm/W 85x170mm/200mm
